1. Rich Effects and Transitions

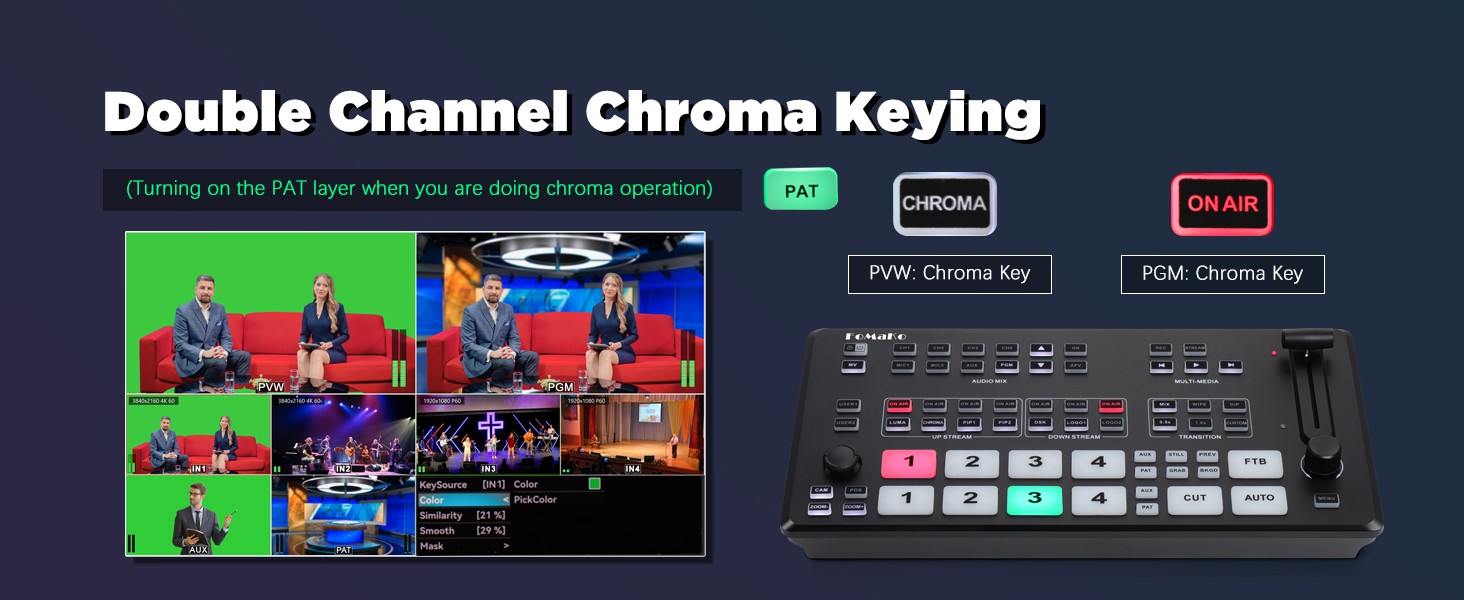

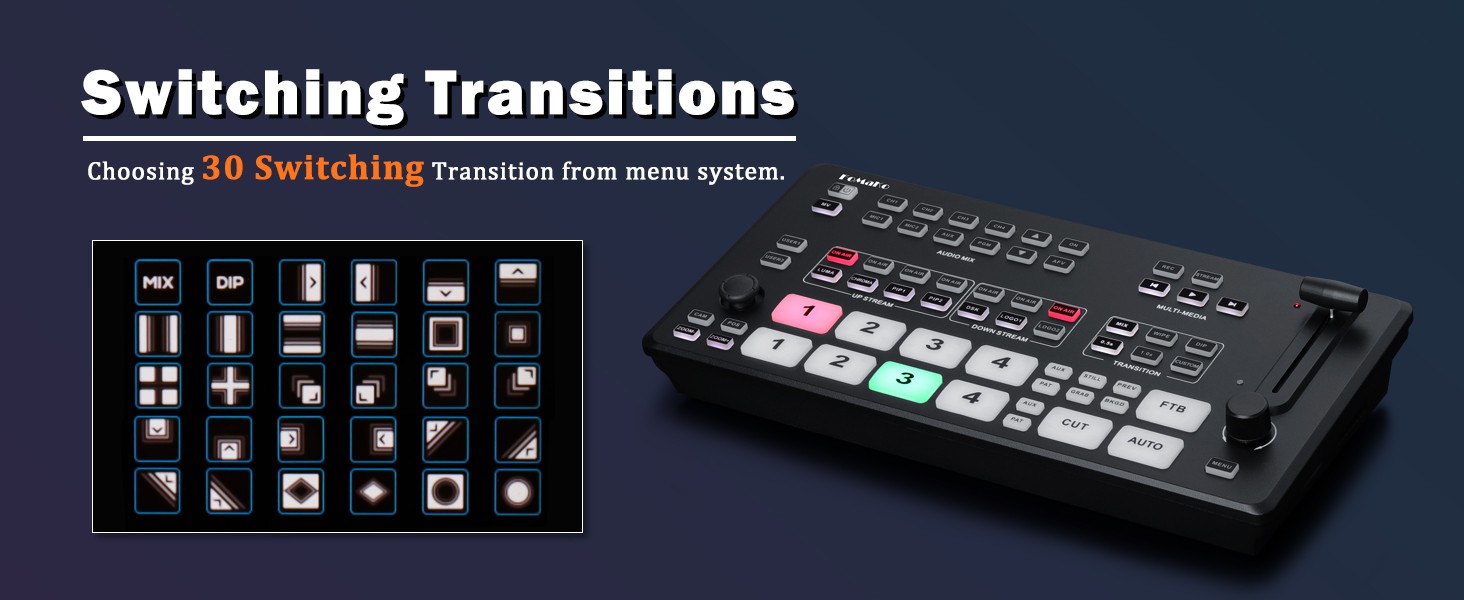

Offers a variety of effects like Luma key,Chroma key and Logo insertion along with PIP and DSK features.Supports up to 30 transitions including Mix,Dip, Wipe and T-bar for dynamic live switching.

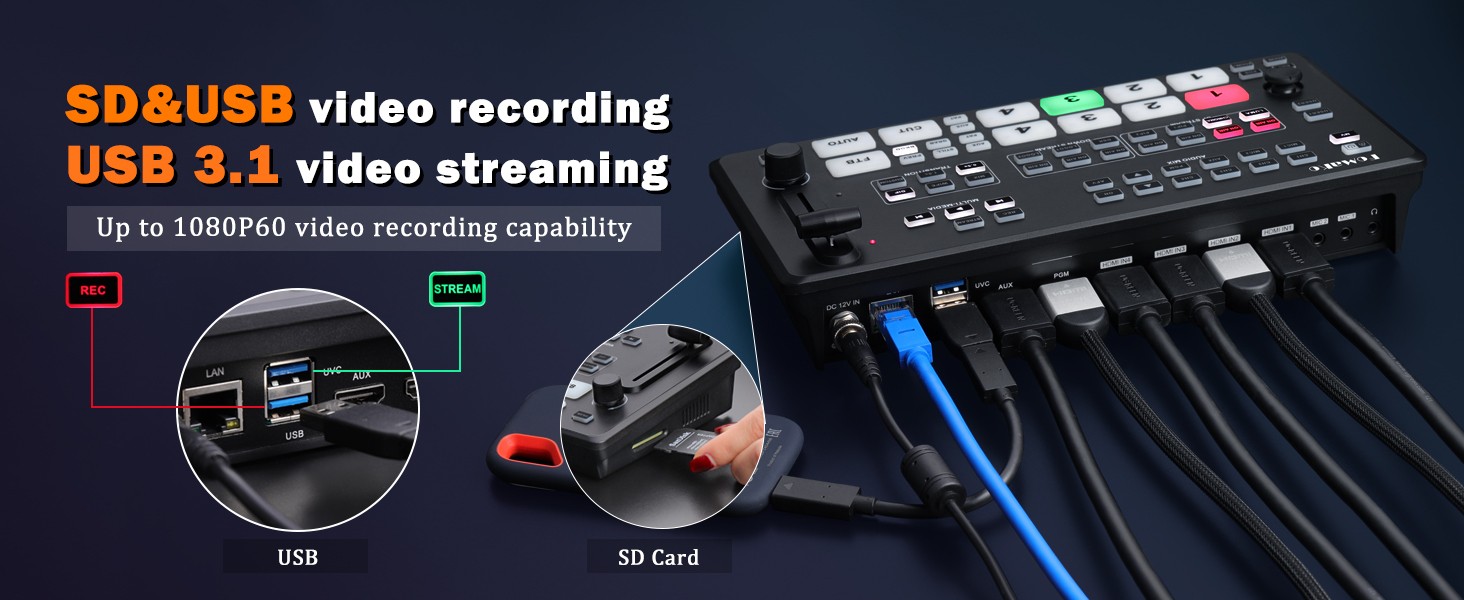

2. Advanced USB3.1 Connectivity

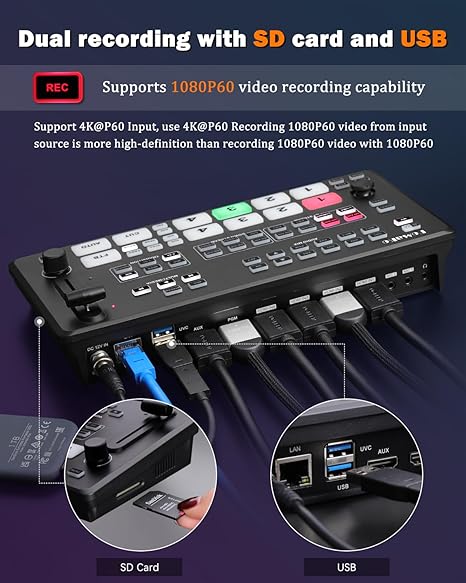

Eqquiped with USB 3.1 for high speed live and USB2.0/SD card for PGM recording,firmware updates, proviing versatile and efficient connectivity options.

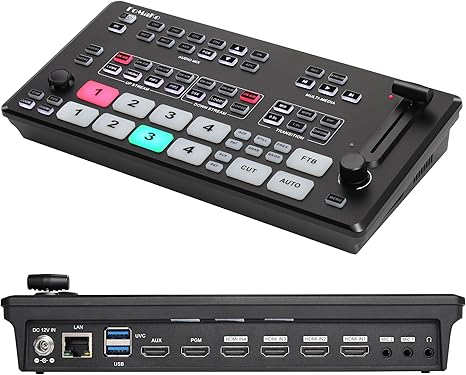

3. Versatile Multi-port Support

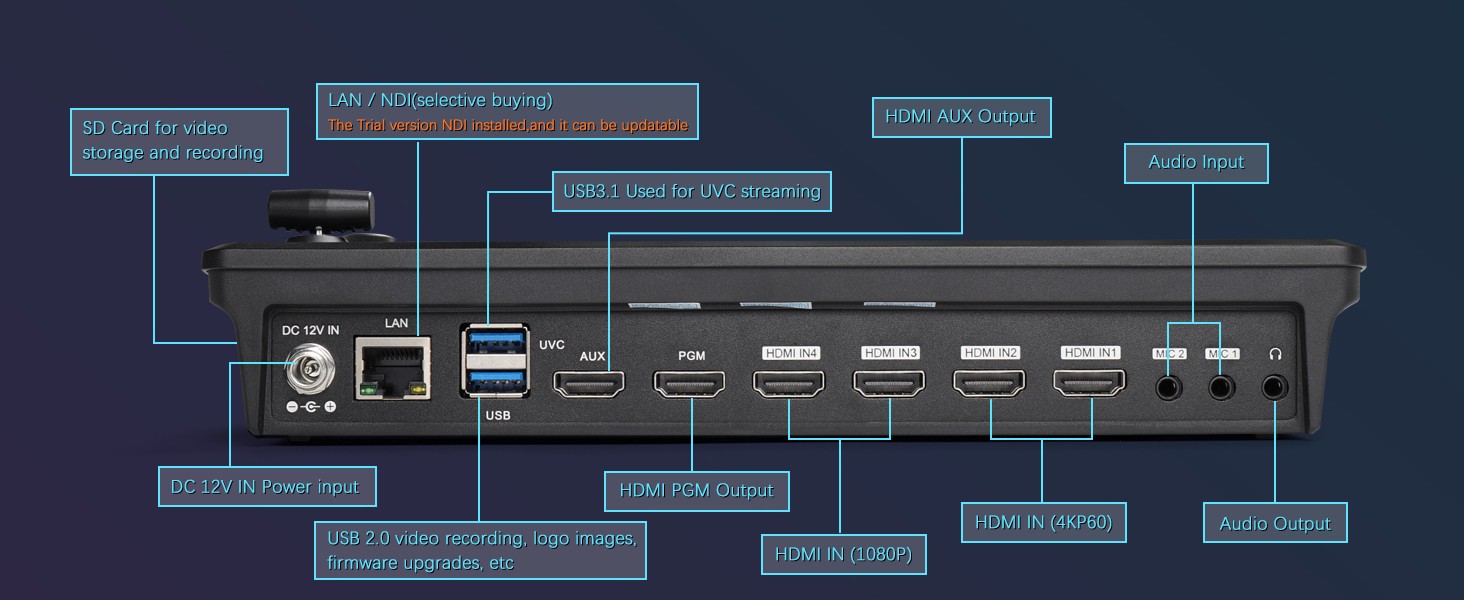

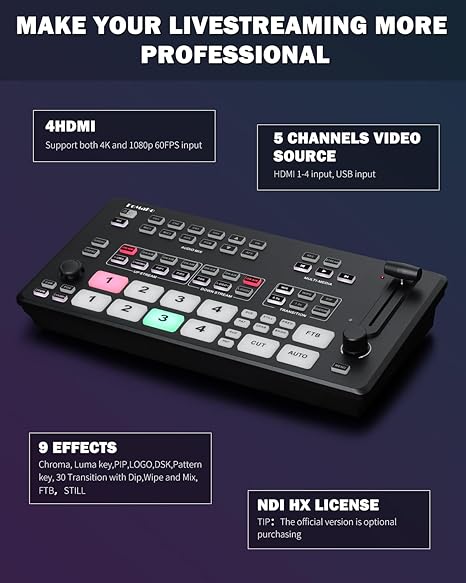

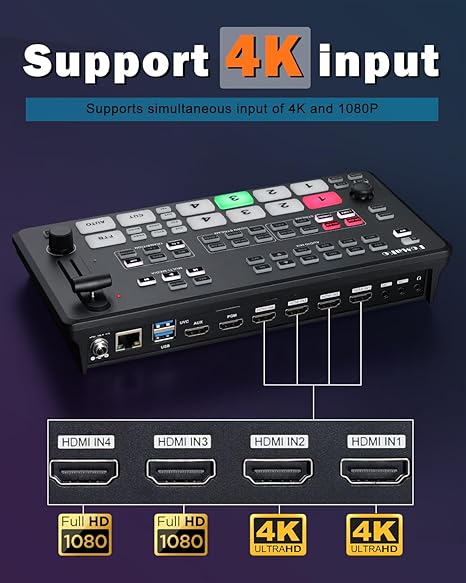

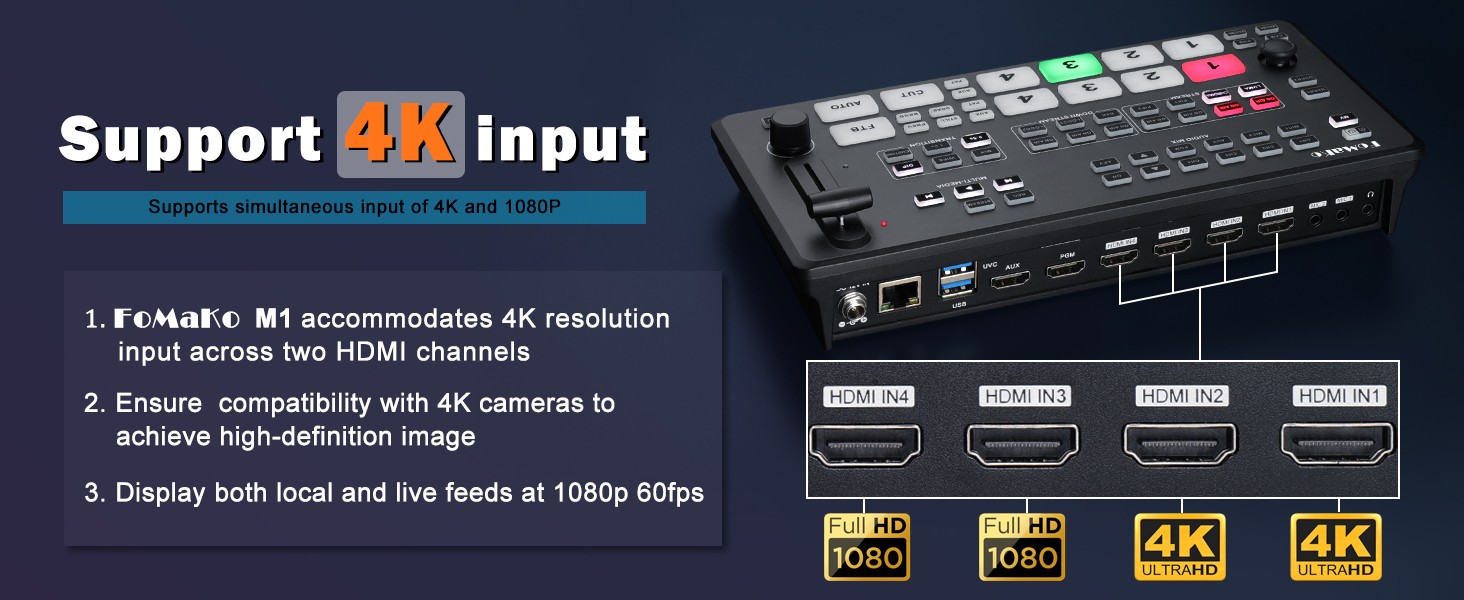

Features 4 HDMI inputs(both 4K and 1080p), HDMI PGM , AUX output and USB3.1 lossless output. The PGM can overlay up to 8 layers, delivering powerful and flexible switching capabilities for professional live productions.

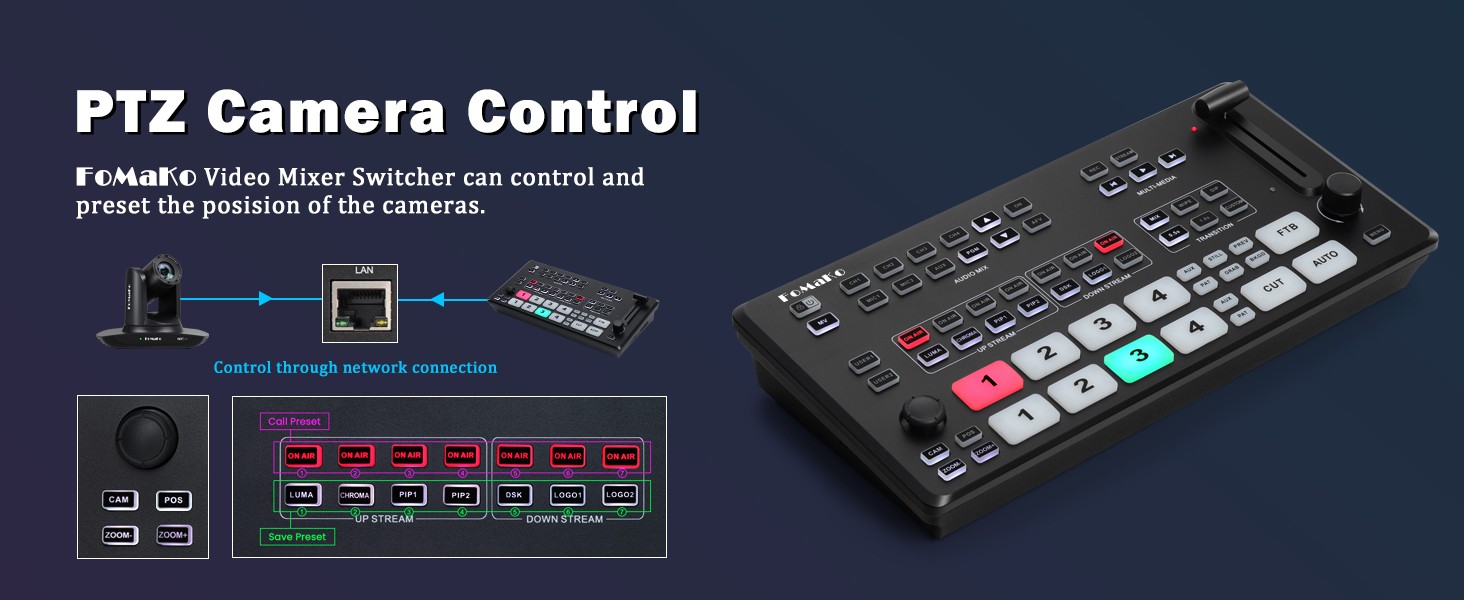

4. Intelligent PTZ Control
With MI, you can seamlessly adjust cameras angles, zoom, and recall preset positions on-the-go, enhancing your live production more convenient and ease of use.(Tip: NDI updatable)
5. Smart Audio Trinity
Audio Mixing/Delay Adjustment+ALC, 4 HDMI + 2 mic inputs with independent channel control (volume, mix, delay). Features AFV mode, 0-1s audio delay for perfect sync, and smart noise reduction (ALC) for clear, stable mic output.
6. Remote Control
Built in web server,through the network connection, users can use computers or mobile phones to remotely control the device and monitor video input, audio status, recording and streaming information in real time,accessing the device control interface via a brower or by scanning a QR code,enabling remote operation and management of the device.

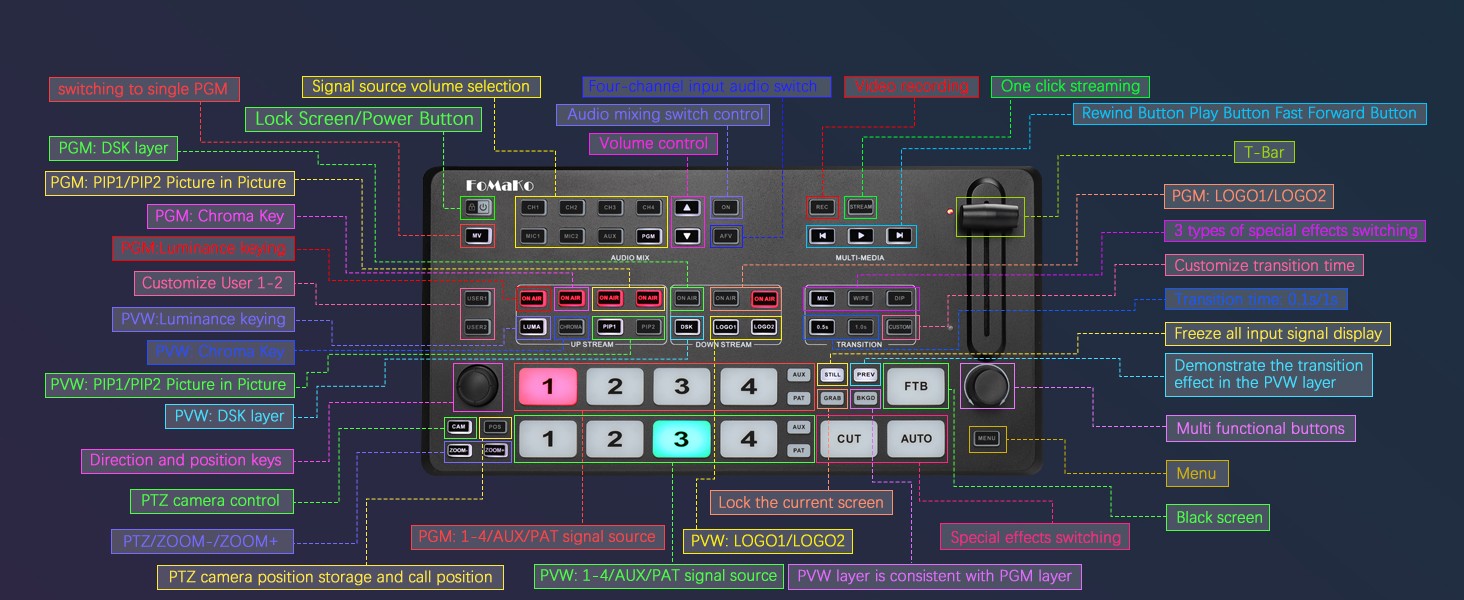

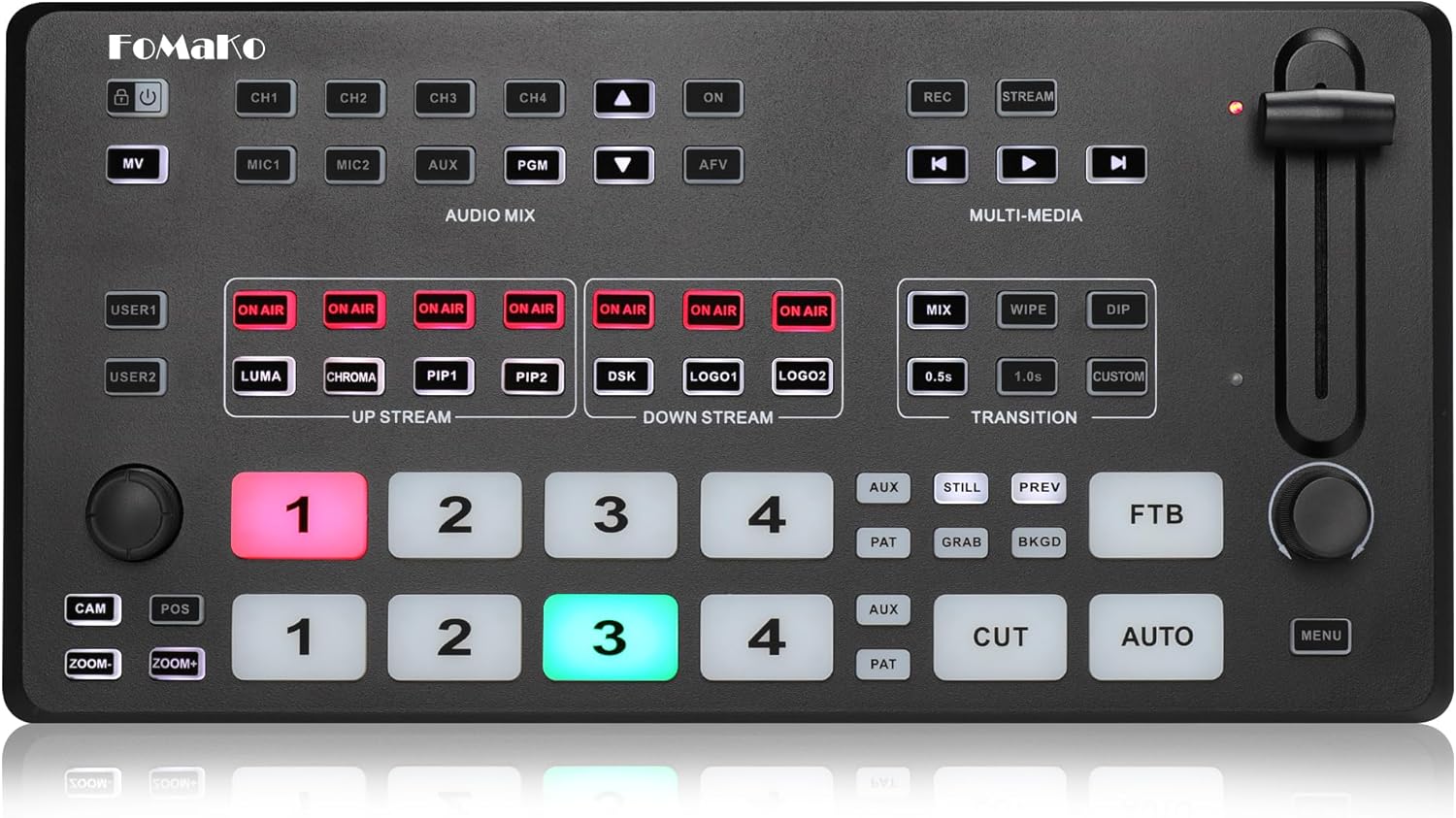

7. Easy setup and operation
Equipped with intuitive control panel buttons and a fader,users can quickly switch between signal sources using buttons and manually control transitions with the fader for precise switching control and manually control the transition process with the fader,achieving pricise control over the transition speed and effects.

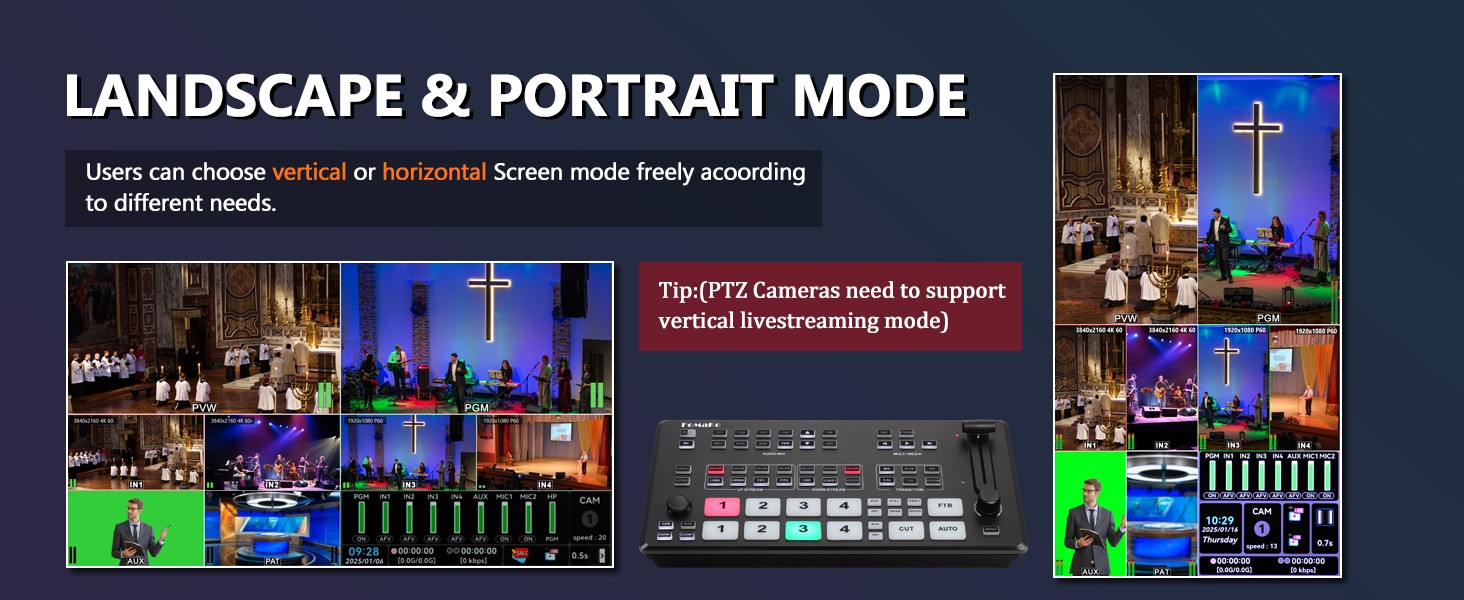

8. Portrait and landscappe Mode
FoMako M1 supports flexible switching between landscape and portrait modes to adapt to different live streaming needs.
| Parameter | ||
| Video Input | HDMI IN x4 (1080Px2 4K60x2） USB x1 | |
| Video Output | HDMI PGM x1+HDMI AUX x1+USB 3.1 x1（Type-A）and RJ45 x1（Streaming） | |
| Audio Input | Line(3.5mm stereo)x2 | |
| Audio Output | Line(3.5mm stereo)x1 | |
| USB | Used for encoding,cameras, logo images, firmware upgrades, etc. | |
| Control Interface | LAN x 1 Used for streaming, PTZ camera control, and software control | |
| SD | Video recording, image updates. | |
| Power | DC 7~ 12V ≤12W | |
| Function | ||
| Transition | T-Bar/AUTO/CUT | |
| Effects | WIPE（Various patterns）/MIX/DIP/PreView/BKGD/Still/FTB | |
| Key | Upstream key：Luma x1/keying x1/PIP x2 downstream key：DSK x1/LOGO x2 | |
| Layer | PGM Supports up to 8 layers. | |
| Audio | HDMI x 4 、Multimedia and dual microphones/line input; Audio delay: 0-1s | |
| PTZ | VISCA IP | |
| Media | Supports presetting multiple background images, logos, and streaming. | |
| Encoding | H.264 ，Support for separate recording and streaming bitrate. | |
| LOGO | Any size(up to 960x540)and position, supports alpha transparency channel (png images). | |
| Format | ||
| HDMI Input | 2160p 60/59.94/50/30/29.97/25/24/23.98（HDMI2.0 接口） 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60 | |
| HDMI PGM Output | 1080p 60/50/48/30/25/24 | |
| HDMI Color Space | RGB/YUV | |
| USB Output | USB 3.1 Lossless output, maximum support YUV2 1080P60 | |
| Data | 1080p 60/59.94/50/30/29.97/25/24/23.98 | |
| Others | ||
| Voltage | 7~24V | |
| Power | ≤12W | |

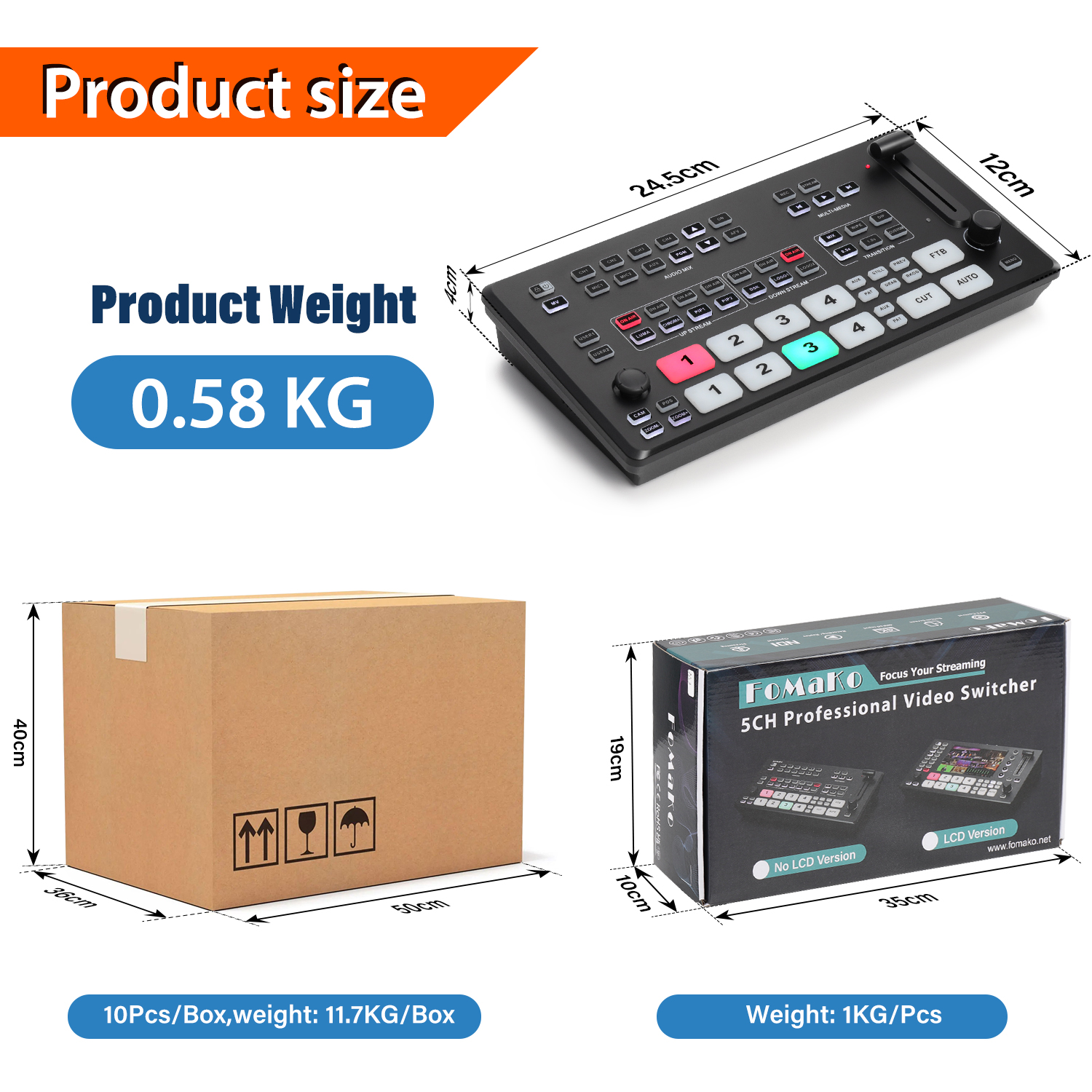

| Size (LDW) | 244* 120*50mm | |
| Weight | 608g | |
| Temperature | Working temperature: 0℃~50℃, Storage temperature: -30℃~70℃ | |
| Attachment | Adapter( 12V 2A) x1； USB3.0 cable (A TOA) x1 | |
