【 Advanced AI Auto-Tracking Gen 3 Version 】FoMaKo third-generation AI Tracking enables more customized tracking features, such as you can adjust the tracking modes, tracking sensitivity, figure size, character position and lost target action. You can choose real-time tracking and regional tracking according to the use of the environment. simply press F2 on the remote control to turn on automatic tracking and Press F4 to switch tracking target.
【 Leading Auto-Focus(AF) Technology 】Fast, accurate and stable Auto-Focus(AF) technology. Pan/Tilt/Zoom Speed Adjustable, Preset Speed Adjustable as well. Support Focus Mode Auto/Manual/One Push Focus. Compared to our competitors, our Auto-focus speed is more faster, FoMaKo PTZ camera maintains clear HD image both during movement and zoom in/out zooming.

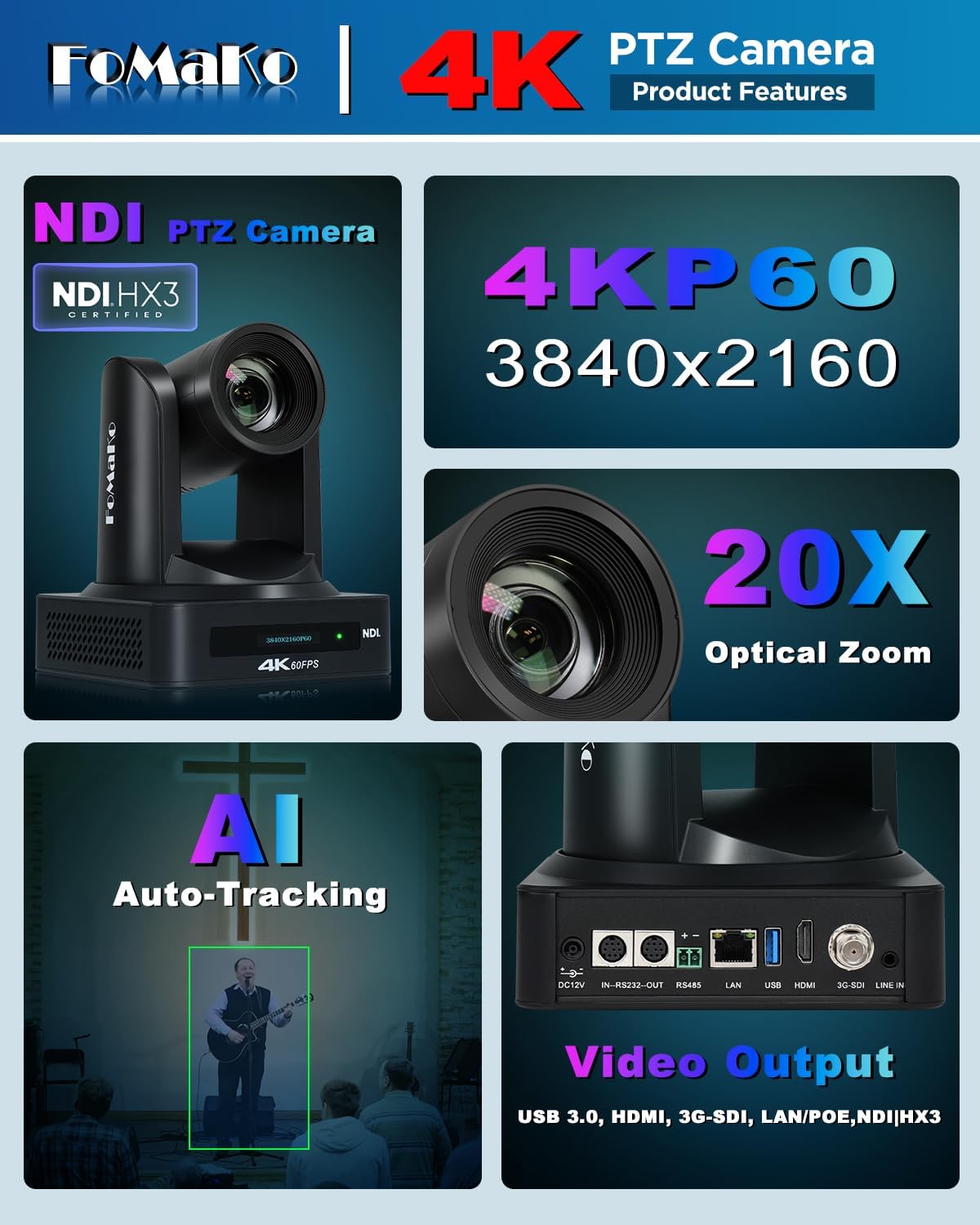

【 True to Life Colors and pretty picture quality 】Simultaneous LAN, USB3.0, HDMI 2.0 / LAN, 3- channels video output. HDMI: 4KP60, 1080P60, 1080P50,1080P30,etc. USB3.0: 4KP60, 1080P60, 1080P30 etc. LAN: 4KP60, 1080P60, etc. NDI: 1080P60, etc. SDI:1080P60. Supports broadcast rate and covered 1080P, 720P resolutions.
【 More application scenarios 】FoMaKo PTZ Camera, Designed and produced for professional AV(audio video system) Live Streaming / Live Production / Live Broadcasting. Suitable for Church worship live services, studio, University, Factory live, sports club / eSports / dance club, Training Classroom, Large Hard Rock Bar, Texas Hold'em, High end Summit, Large Conference, Theater / concert LiveStreaming, etc.
| Model | 12X | 20X |
| Camera Parameters | ||
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor | |
| Effective Pixel | 8.42M, 16: 9 | |
| Video Format | HDMI: 3840*2160/1920*1080P60/59.94/50/30/29.97/25; 1280*720P60/59.94/50 SDI: 1920*1080P60/59.94/50/30/29.97/25; 1920*1080I60/50/59.94; 1280*720P60/59.94/ 50 USB: YUY2/NV12: 1920*1080/1280*720/1024*576/800*600/800*448/ 640*480/640*360/480*270/320*180P30/25/20/15/10/5fps H264/H265/MJPG: 3840*2160/1920*1080/1600*896/1280*720/1024*576/960*540/ 800*600/800*448/720*576/720*480/640*480/640*360/480*270/ 352*288/320*240@60/30/25/20/15/10/5fps LAN: Main Stream: H264/H265: 3840*2160/2592*1944/2304*1296/1920*1080/1280*720@60/30/25/20/15/10/ 5fps; Sub Stream: H264/H265: 1920*1080/1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/ 10/5fps; | |
| Optical Lens | 12X f=4. 1~49.2mm | 20X f=5.05~91.49mm |
| Viewing Angle | 6.72°（T） 70.4°（W） | 3.81°（T） 60.04°（W） |
| Aperture Ratio | F1.8 – F2.68 | F1.8 – F2.9 |
| Digital Zoom | 16 X | |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) | |
| DNR | 2D & 3D | |
| White Balance | Auto/Manual/One push/Specified Color Temperature ( 2400K-7100K, adjustable in 100K steps ) | |
| Focus | Auto/Manual/One-push | |
| Iris | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC(Backlight Compensation) | On/Off | |
| Dynamic Range | Off/ Dynamic level adjustment | |
| Video Adjustment | Brightness, Contrast, Sharpness, Horizontal Flip, Vertical Flip, Black and White Mode, Gamma Curve, Electronic Zoom, DCI, Ultra Low Light Mode | |
| SNR | >50dB | |
| Input/Output Interface | ||

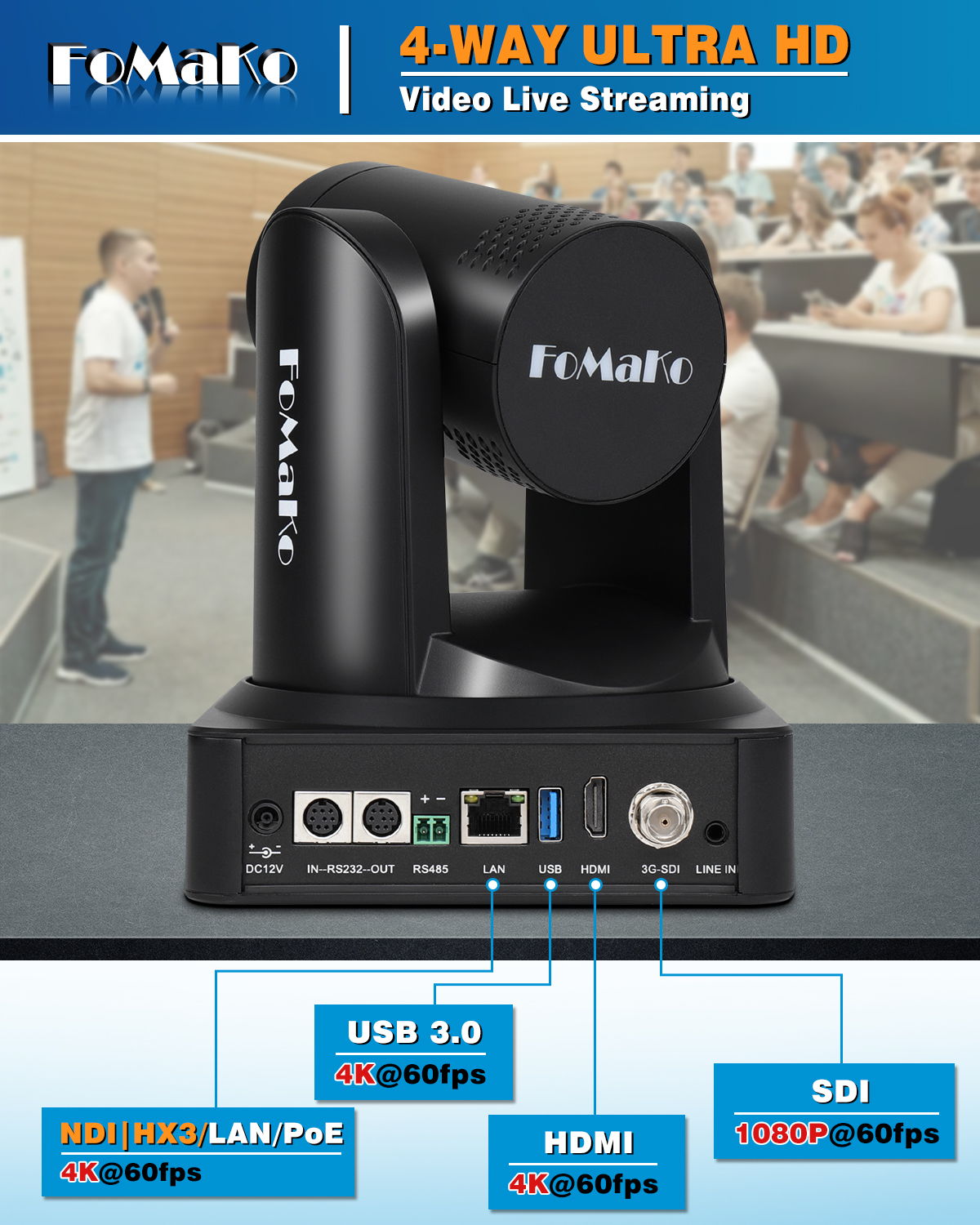

| Interface | HDMI, SDI, LAN(POE+ support), USB3.0, A-IN, RS232-IN, RS232-OUT, RS485, DC12V power supply | |
| Video output | HDMI, SDI, LAN, USB3.0 | |
| Video compression formats | LAN: H.265, H.264 USB 3.0: MJPG, H.264, H.265, YUY2, NV12 | |
| Video Bitrate | 64-40960 | |
| Bitrate Control | Fixed Bitrate, Variable Bitrate | |
| Frequency | 50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps | |
| Audio Input | Dual audio channel 3.5mm linear input | |
| Audio Output | HDMI, LAN, USB 3.0, SDI | |
| Audio Bitrate | 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps | |
| Audio Compression Format | AAC, G.711A | |
| Network Interface | 1000M Ethernet port, optional POE+ power supply, supports audio and video output; The Default is DHCP | |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, SRT; NDI supports network VISCA control protocol; supports remote upgrade, remote reboot, and remote reset | |
| Control Interface | RS232-IN, RS232-OUT, RS485 | |
| Serial Communication Protocol | VISCA/Pelco-D/Pelco-P; supports baud rates of 115200/38400/9600/4800/2400 | |
| USB Communication Protocol | UVC (Video Communication Protocol), UAC (Audio Communication Protocol) | |
| Power Interface | HEC3800 power socket (DC12V) | |
| Power Adapter | Input: AC110V-AC220V Output: DC12V/2A | |
| Input Voltage | DC12V±10% | |
| Input Currency | ≤1.5A | |
| Power Consumption | ≤18W | |
| PTZ Parameter | ||
| Pan | -170° ~ +170° | |
| Tilt | -30° ~ +90° | |
| Pan Speed | 0. 1° ~ 60°/s | |
| Tilt Speed | 0. 1° ~ 30°/s | |
| Preset Speed | Pan:60°/s, Tilt:30°/s | |
| Preset Quantity | User can set 255 presets (10 via IR remote control) | |
| Monocular Tracking | ||
| Tracking Modes | Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing | |
| Tracking Distance | Maximum tracking distance up to 18 meters | |
| Others Parameter | ||
| Storage Temperature | -10℃ ~ +70℃ | |
| Storage Humidity | 20% ～ 95% | |
| Working Temperature | -10℃ ~ +50℃ | |
| Working Humidity | 20% ～ 80% | |

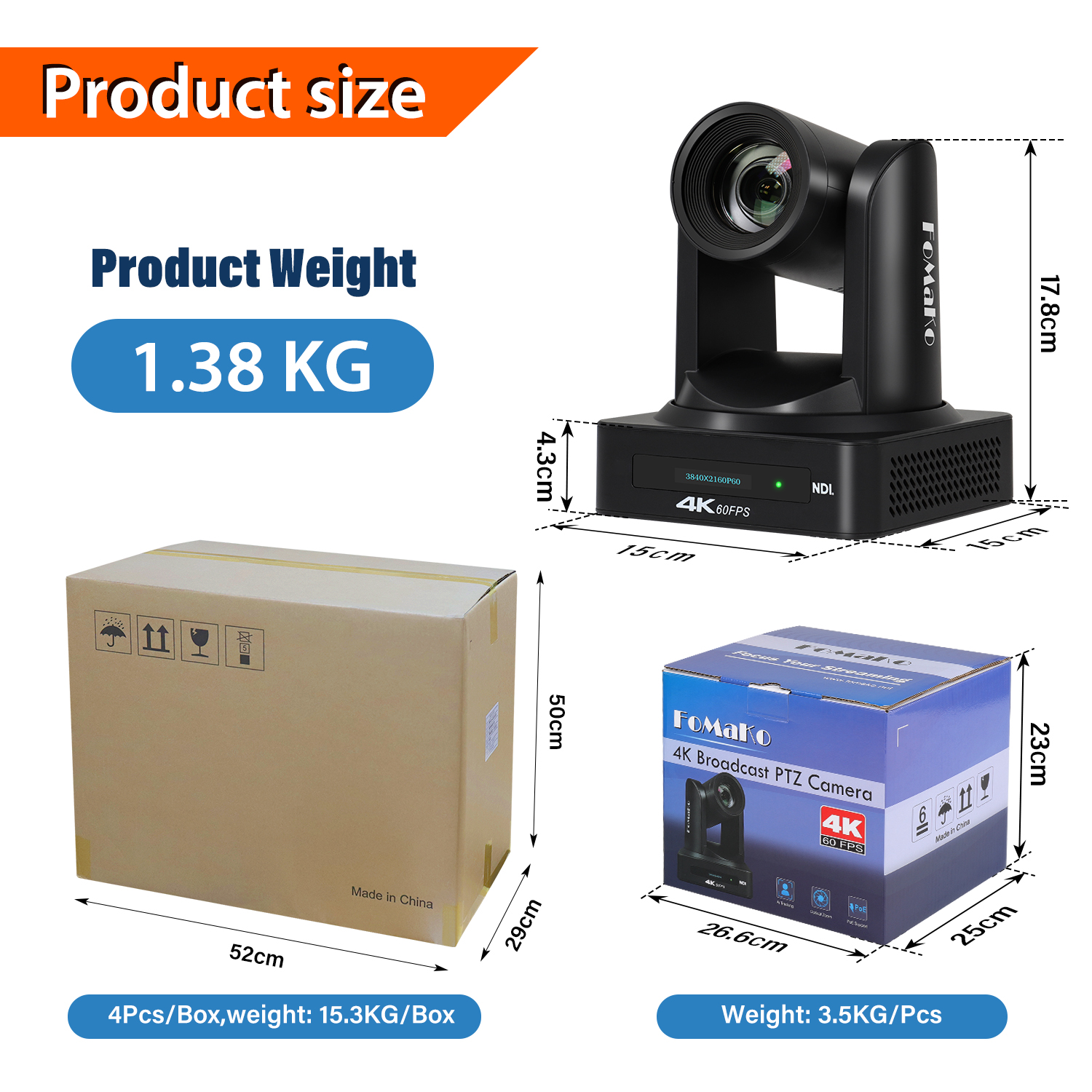

| Dimension | 150mm*150mm*167.5mm | |
| Weight | 1.4kg | |
| Environment | Indoors | |
| Accessory | ||
| Supplied | Power adapter User manual IR remote control USB 3.0 Video Cable 1 x RS232 Serial Cable Brackets for wall / tripod / ceiling mounting | |
