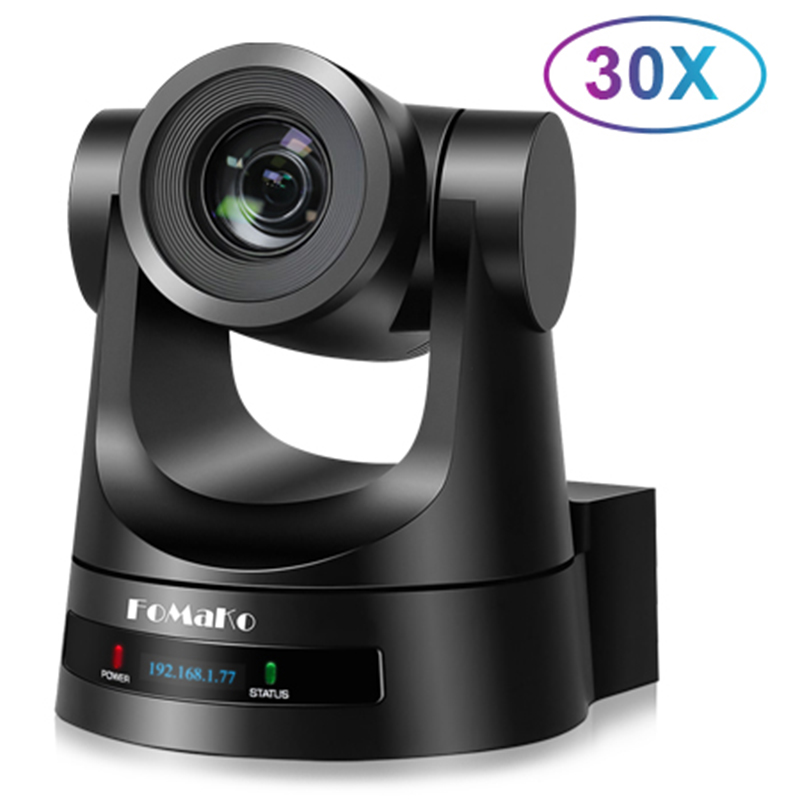

| Model | 20X | 30X |
| Camera Parameters | ||
| OpticalZoom | f＝5.1–90.5mm | f＝5.2–148.4mm |
| Image Sensor | 1/2.8inchhighqualityHDCMOSsenso | |
| Effective Pixel | 16:9,2.07megapixel | |
| Video Format | HDMI/3GSDI: 1080P60、1080P50、1080P30、1080P25、720P60、720P50; USB3.0: YUY2/NV12: 640x480/320x180/480x270/640x360/800x448/800x600/1024x576/1280x720 /1920x1080P30/15/10 MJPEG/H264/H265: 640x480/320x240/352x288/640x360/800x448/800x600/1024x576/1280x720 /1600x896/1920x1080P30/15/10 | |
| Viewing Angle | 3.5°（N）60°（W） | 2.14°（N）58.1°（W） |
| AV | F1.8–F2.9 | F1.3–F4.8 |
| DigitalZoom | 16X(1920x1080) | |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) | |
| DNR | 2D & 3D | |
| White Balance | Auto/Manual/One-push/VAR(2400K-7100K) | |
| Focus Mode | Auto/Manual/One-push | |
| ExposureMode | Auto/Manual/ShutterPriority, AperturePriority, BrightnessPriority | |
| Iris | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC | On/Off | |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/Wmode, Gammacurve | |
| SNR | >50dB | |
| Input/Output Interface | ||
| Video Interface | HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(compatible withRS485)、DC12VPowerSupply、RotaryDipSwitch、PowerSwitch | |
| Video output | HDMI, SDI, LAN, USB3.0 | |
| Video Stream | Dual stream output | |
| Video Format | MainStream:1920×1080,1280×720,640×480 SubStream:1280×720、640×480、640×360、320×240、320×180 | |
| Video Bitrate | 64Kbps～40960Kbps | |
| Video Compression Format | LAN：H.264、H.265 USB3.0：MJPG、H264、H.265、YUY2、NV12 | |
| Audio Input Interface | Double track 3.5mm linear input | |
| Audio Output Interface | HDMI, LAN, 3G-SDI | |
| Audio Compression Format | AAC | |
| Network Interface | 1000M Ethernet port（10/100/1000BASE-TX） | |
| Control Interface | RS232-IN, RS232-OUT, RS485, RS422 | |
| Control Protocol | VISCA/Pelco-D/Pelco-P, Baud Rate:115200/38400/9600/4800/2400bps | |
| Power Interface | HEC3800 outlet(DC12V) | |
| Power Adapter | InputAC110V-AC220V;OutputDC12V/2.0A | |
| Input Voltage | DC12V±10% | |
| Input Current | Maximum:1A | |
| Power Consumption | Maximum:12W | |
| PTZ Parameter | ||
| Pan | -170° ~ +170° | |
| Tilt | -30° ~ +90° | |

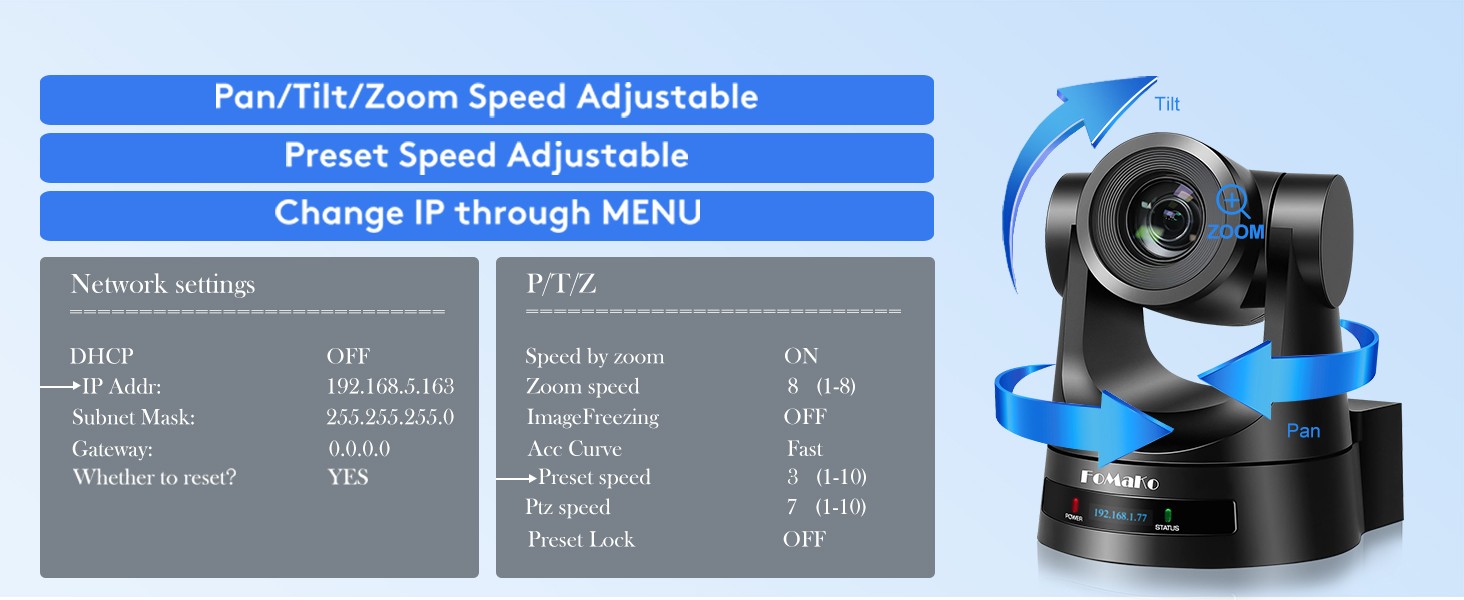

| Pan Speed | 1.4 - 40°/sec | |
| Tilt Speed | 2.9-30°/sec | |
| Preset Speed | Pan:40°/sec, Tilt:30°/sec | |
| Preset Accuracy | ±0.1° | |
| Preset Number | 255presets(10presetsviaremotecontrol) | |
| Others Parameter | ||
| Storage Temperature | -10℃ ~ +70℃ | |
| Storage Humidity | 20% ～ 95% | |
| Working Temperature | -10℃ ~ +50℃ | |
| Working Humidity | 20% ～ 80% | |

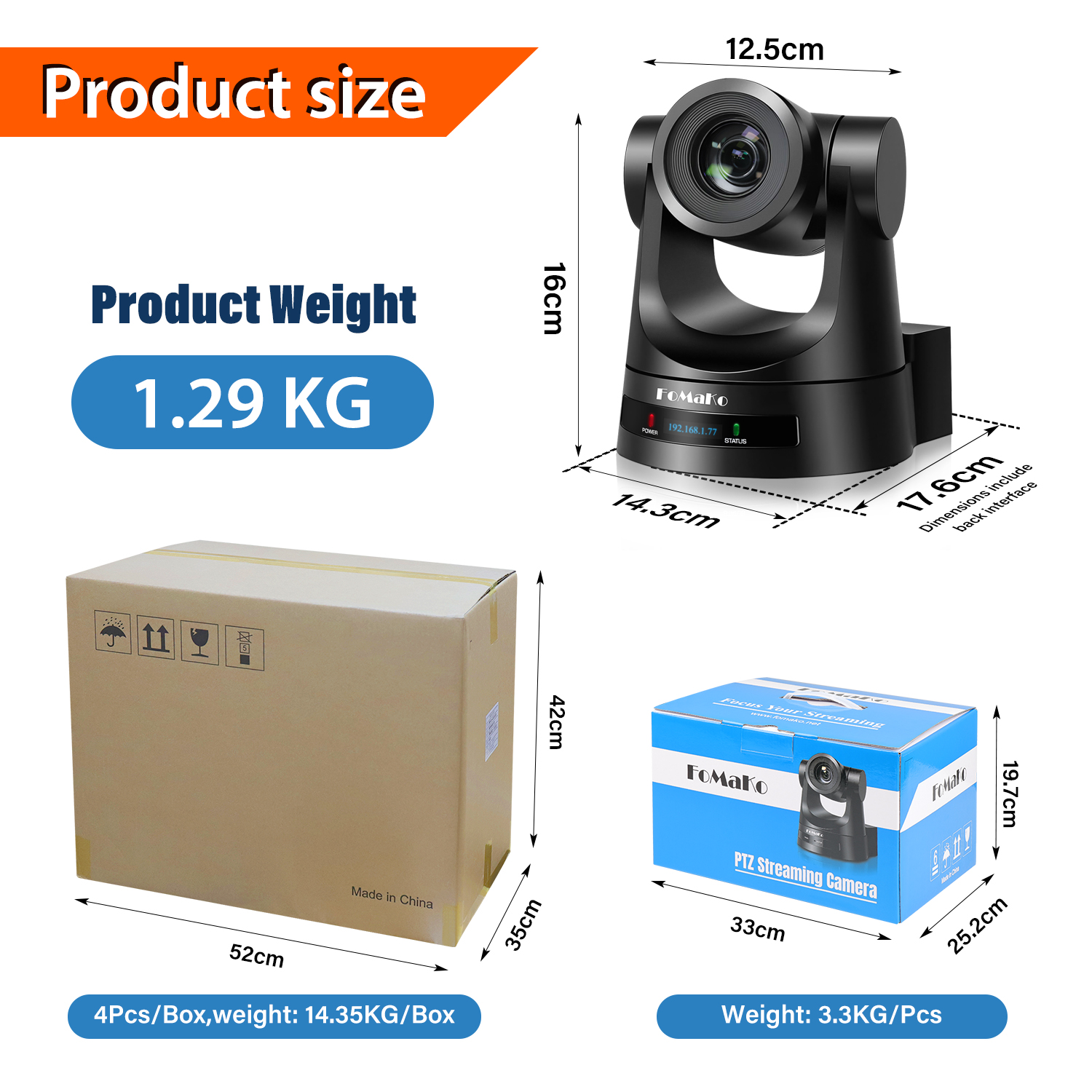

| Dimension | 143mm×176mm×169mm | |
| Weight | 1.2kg | |

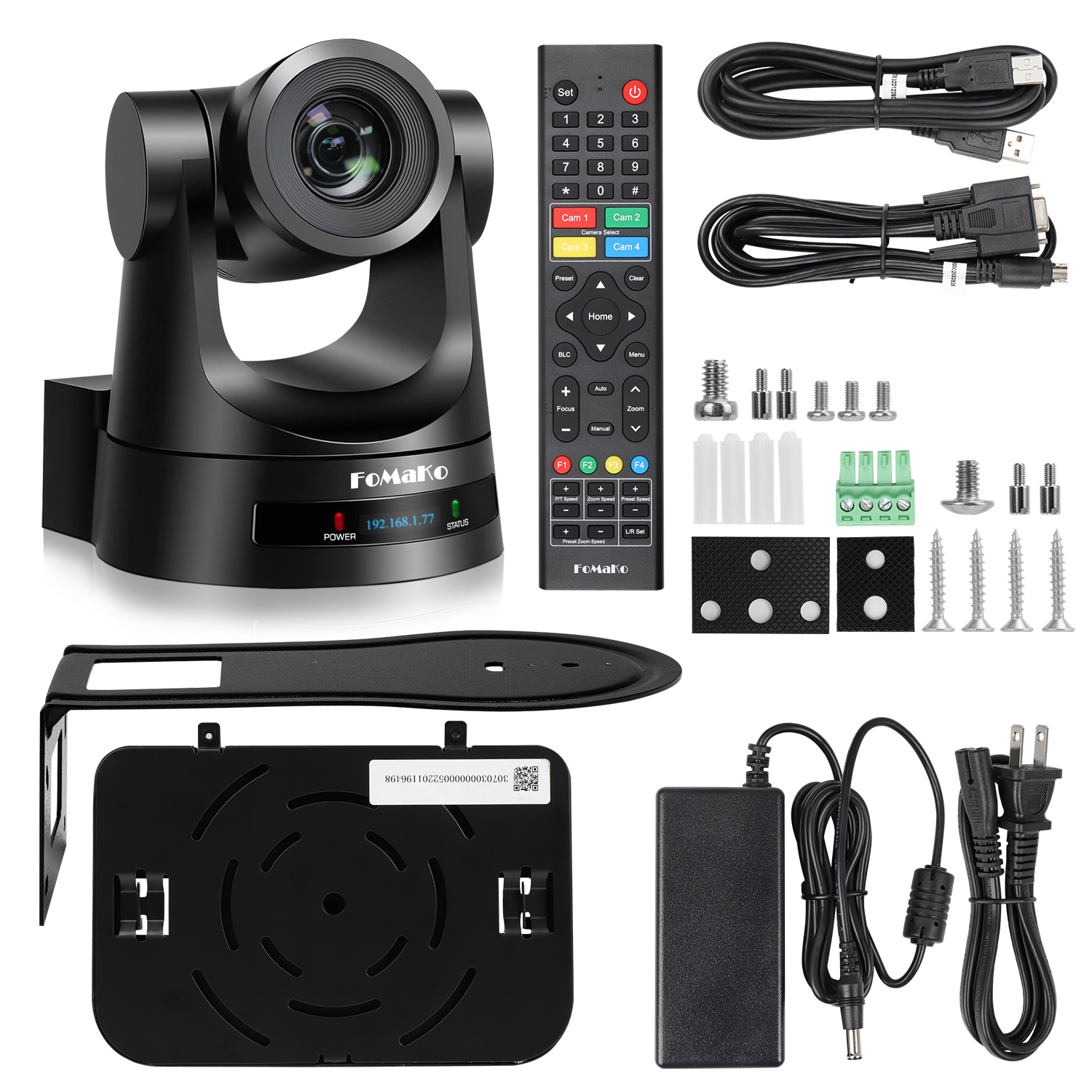

| Accessory | ||
| Supplied | Power adapter User manual IR remote control 1 x RS232 Serial Cable Brackets for wall / tripod / ceiling mounting | |
Great New!

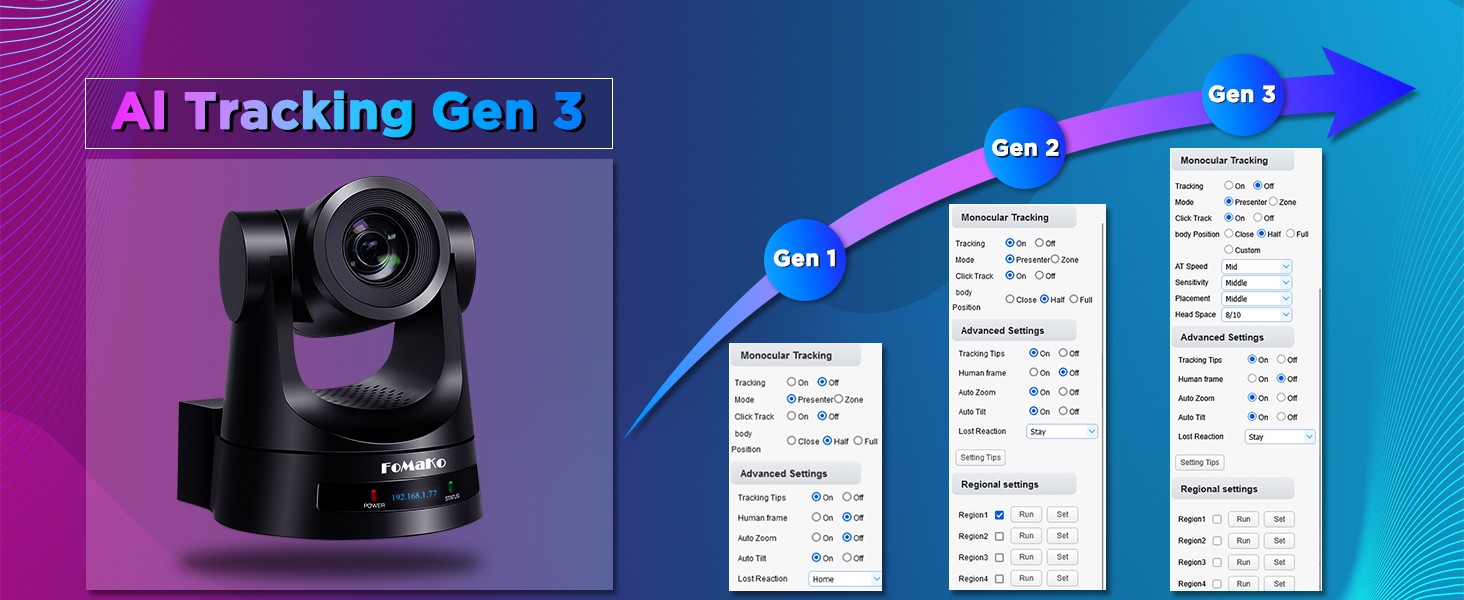

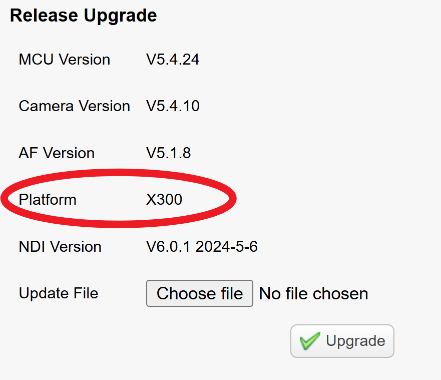

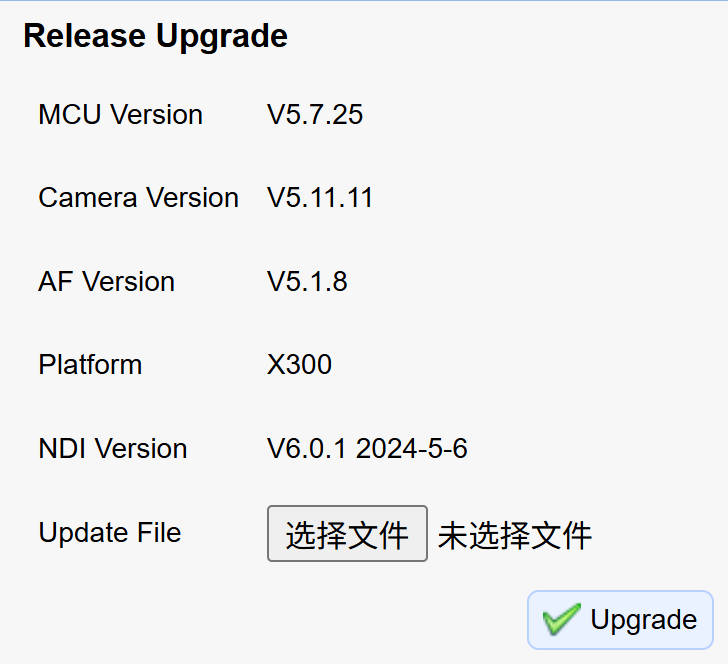

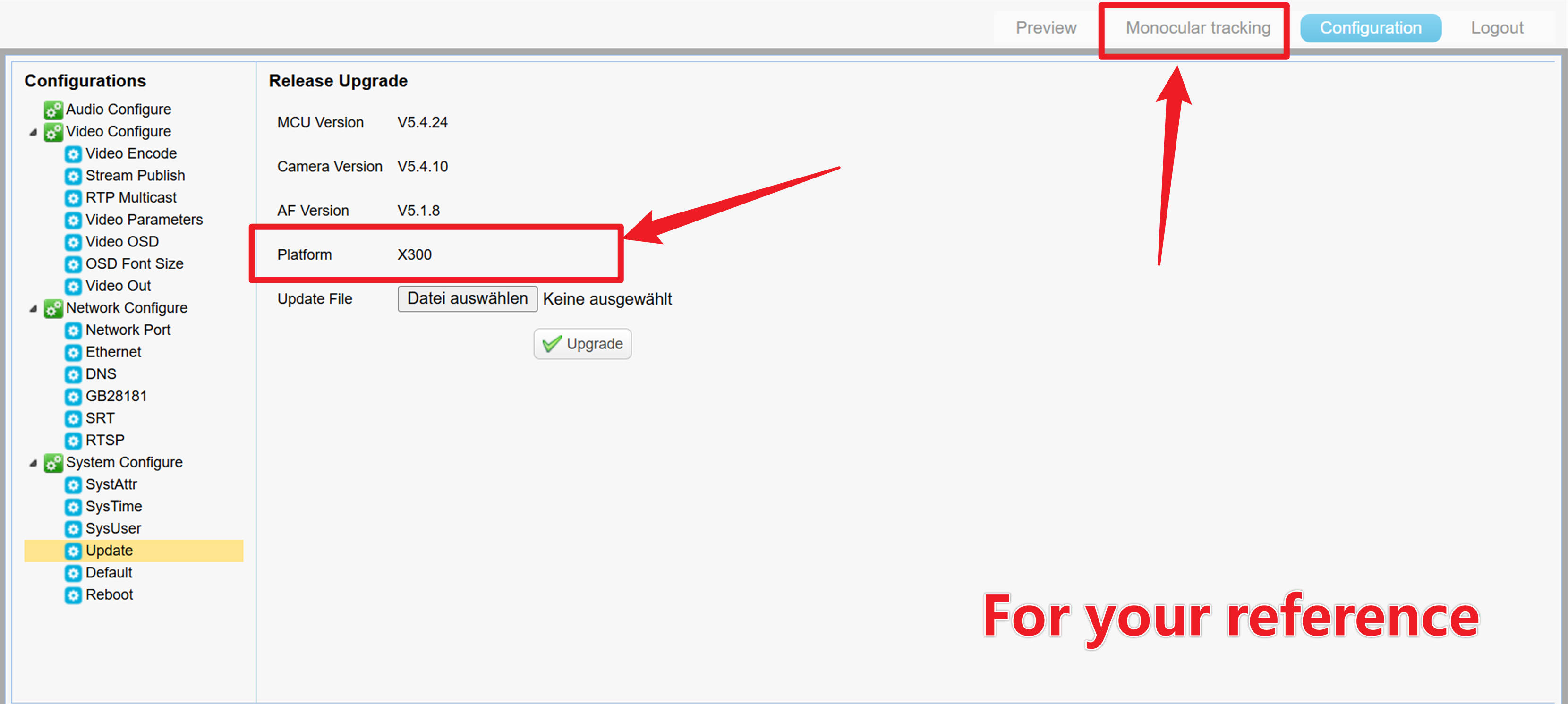

Recently New Released X300 Platform FMK30SDI Pro can upgrade to AI tracking version！
Upgrade Instruction :
A: X300 Platform FMK30SDI Pro without AI tracking :
(1) Add AI Tracking - Firmware Download
(2) Optimize AI tracking Algorithm - Firmware Download
***Please add AI tracking function to the camera, then, Optimize AI tracking. ***
B : X300 Platform FMK30SDI Pro with AI tracking :
Optimize AI tracking Algorithm - Firmware Download
Important Note: Cameras not using the X300 Platform MUST NOT perform this upgrade, as it will cause the camera to stop working.
