Item | Description |
Keyboard Parameters | |

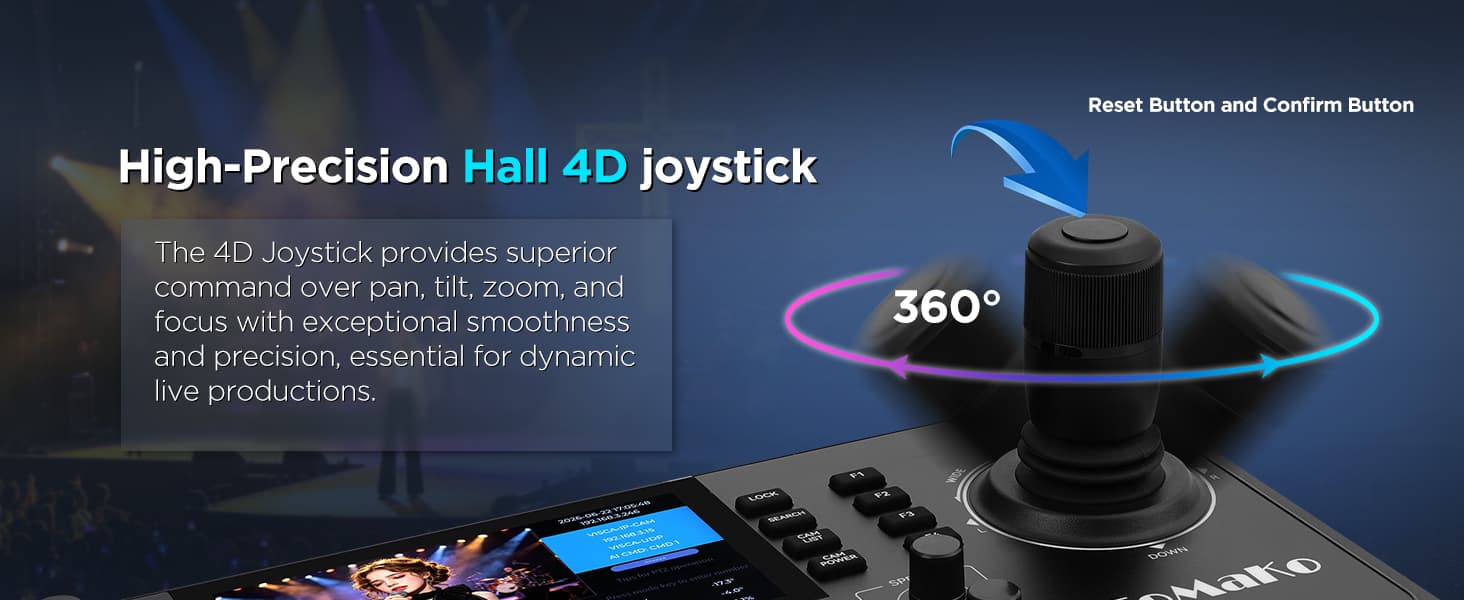

Joystick | 4D precision Joystick |

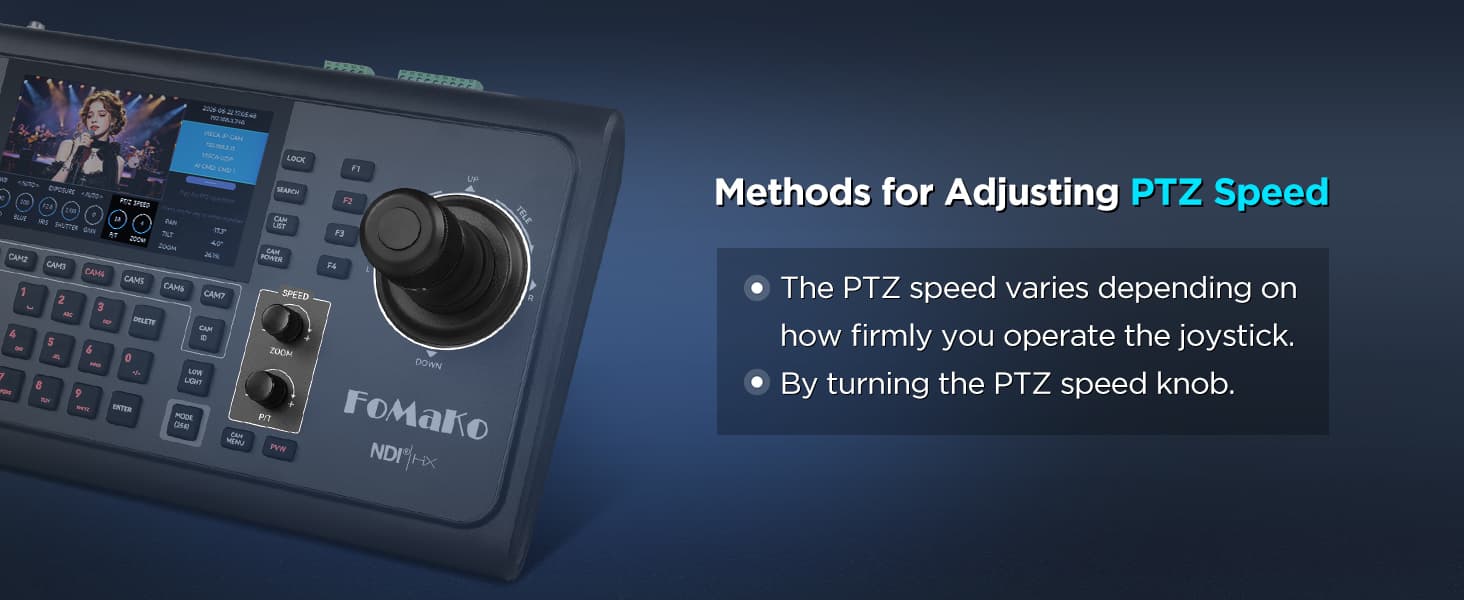

Knobs | 3D knobs,support scale rotation to adjust parameters, PT speed knob also supports menu operation. |
Buttons | High quality sillicone buttons,support red backlight |

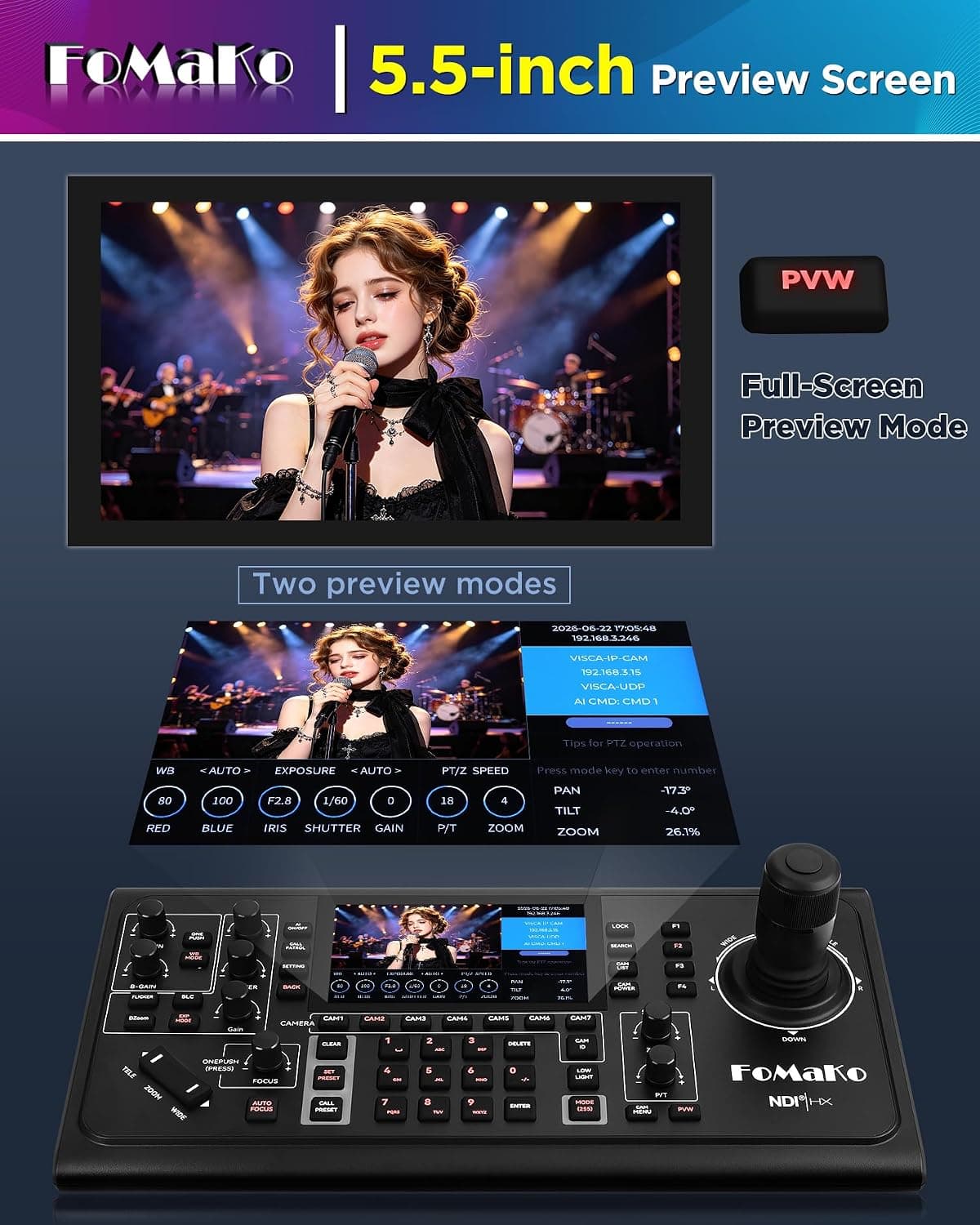

Screen | 5.5" LCD color display |

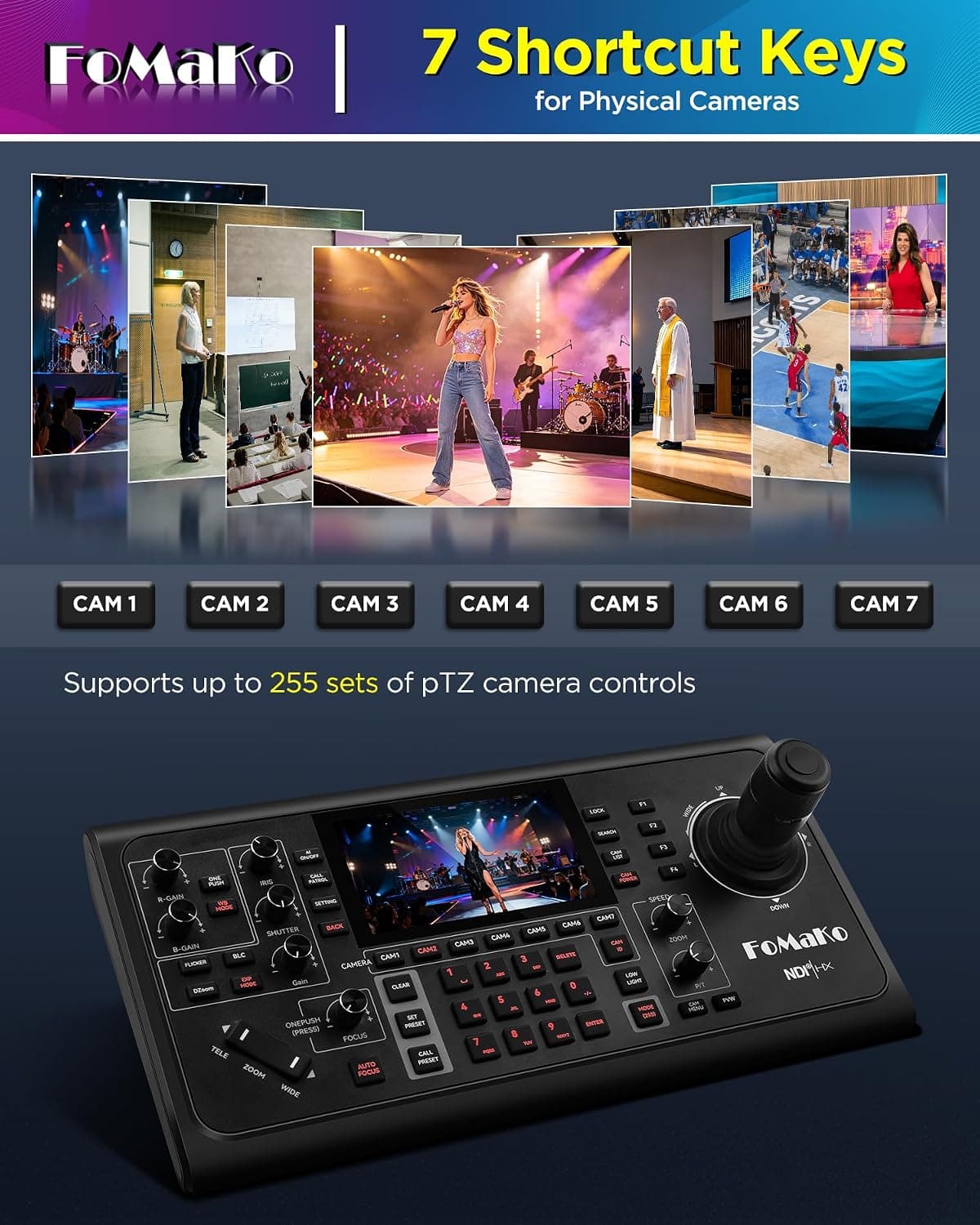

Shortcut Button | Support 7 camera shortcut button settings, and additional camera custom ID settings. |
Button Prompt Tone | Button sound prompt on/off |
AI Button | Support opening and closing of AI tracking quickly |

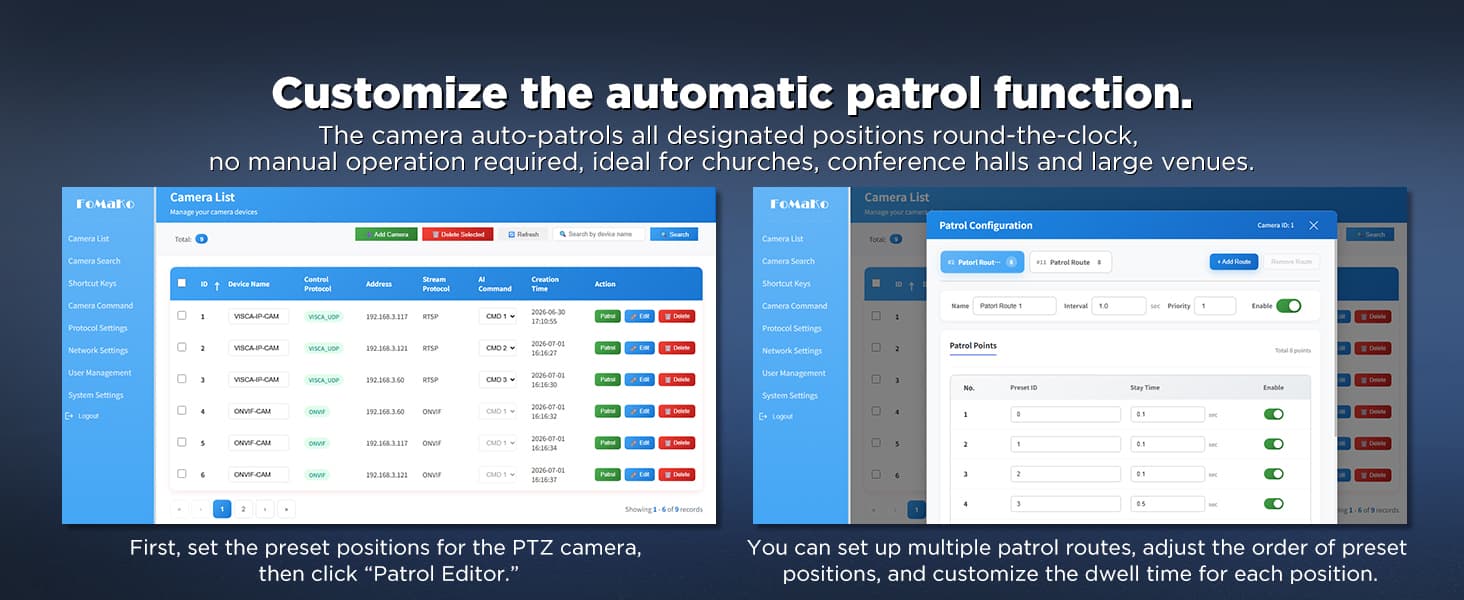

PATROL Button | Support one-key patrol function |
Lock Button | Support one-key lock function |
Mode (255) Button | Specify 10-255 camera or preset point quickly |
Max Control Quantity | 255 |
Max Preset Position | 255 |
Control | |

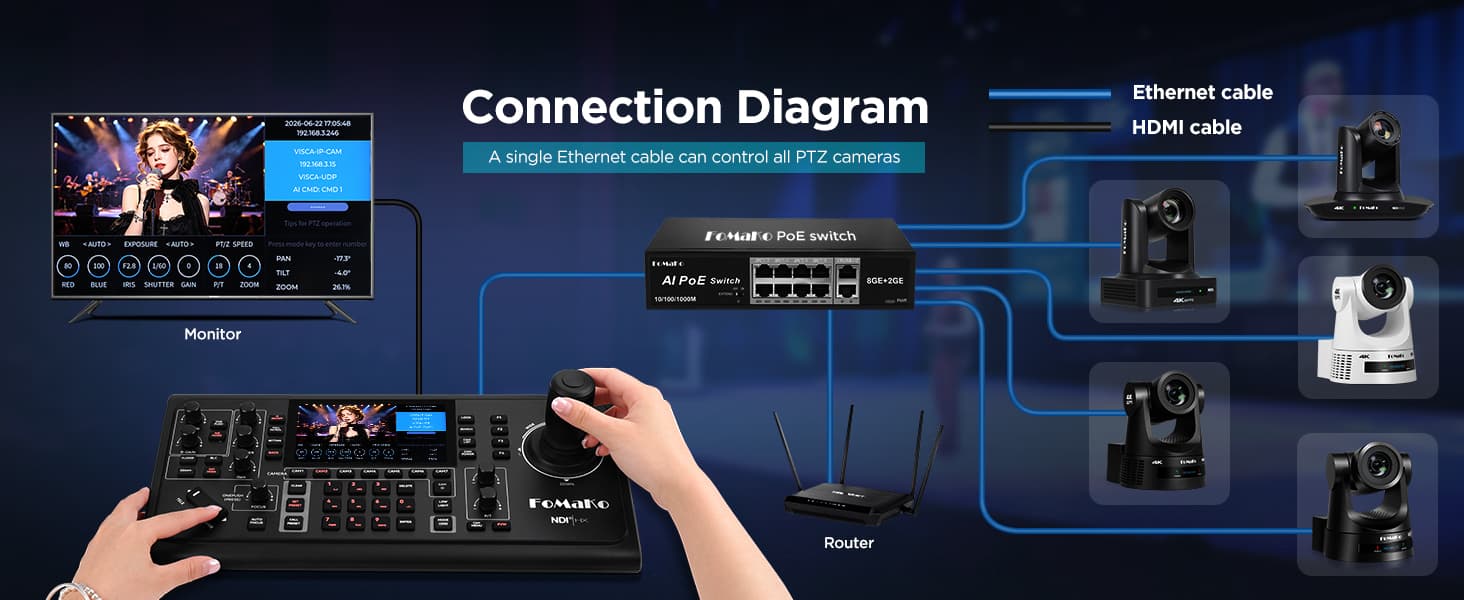

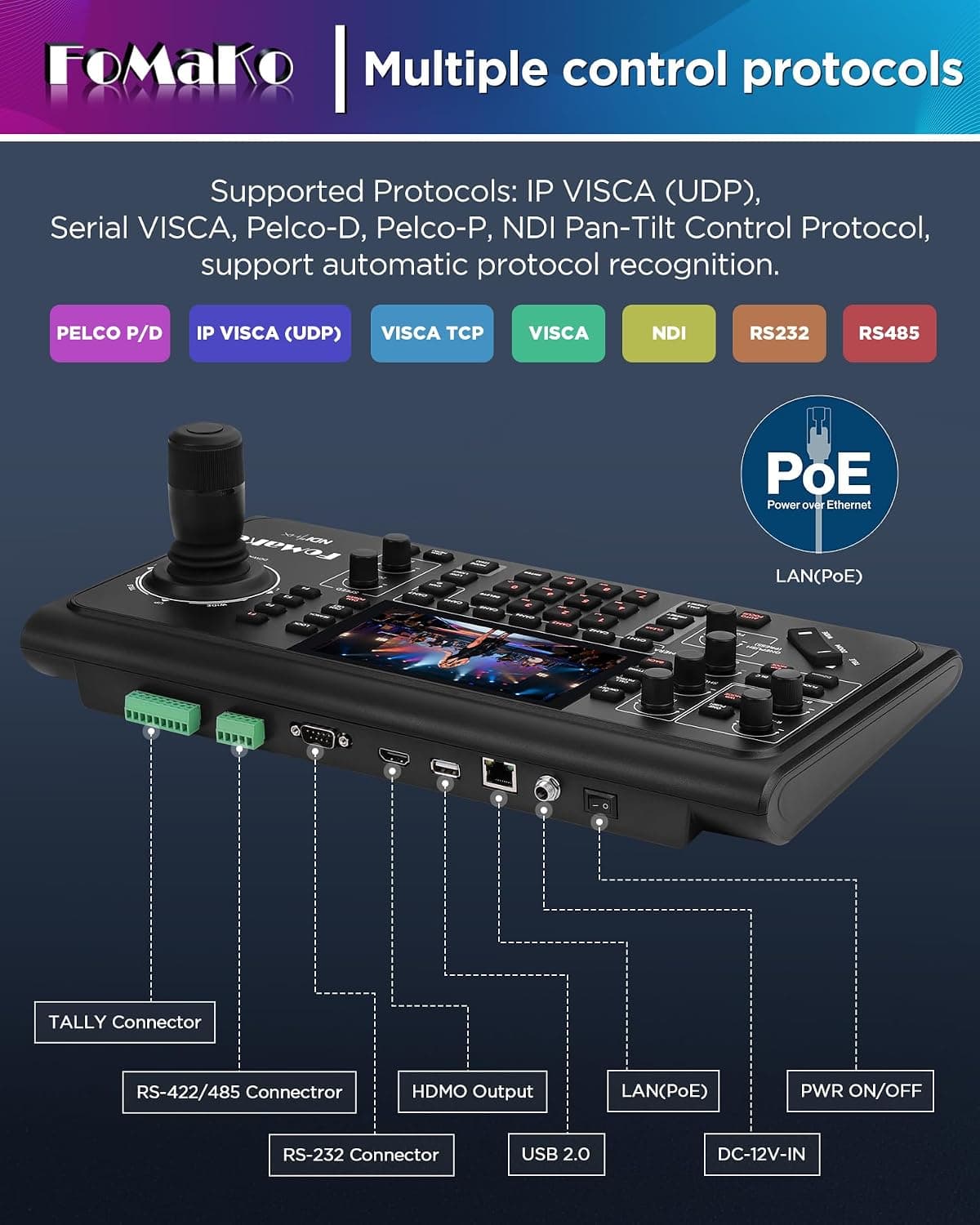

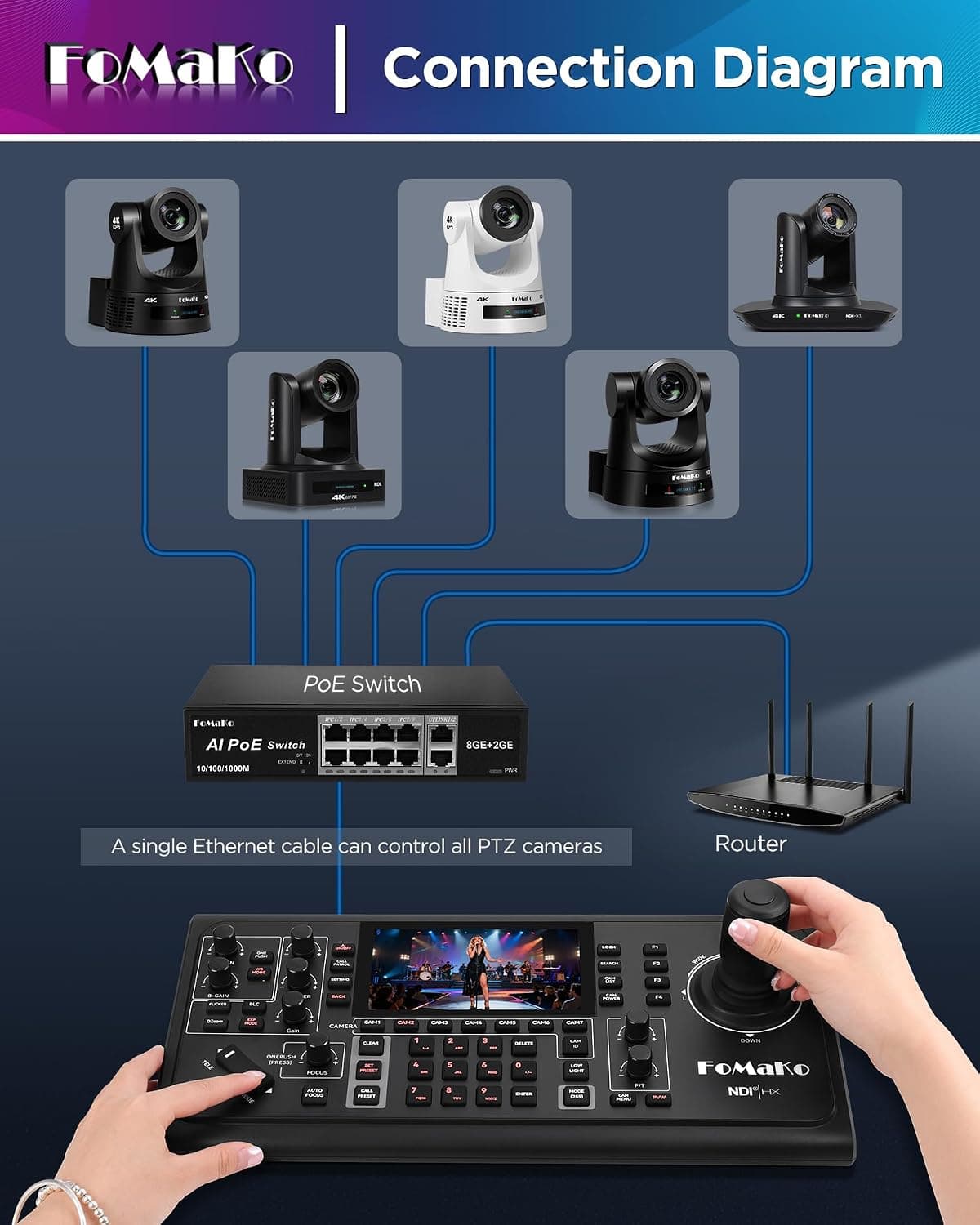

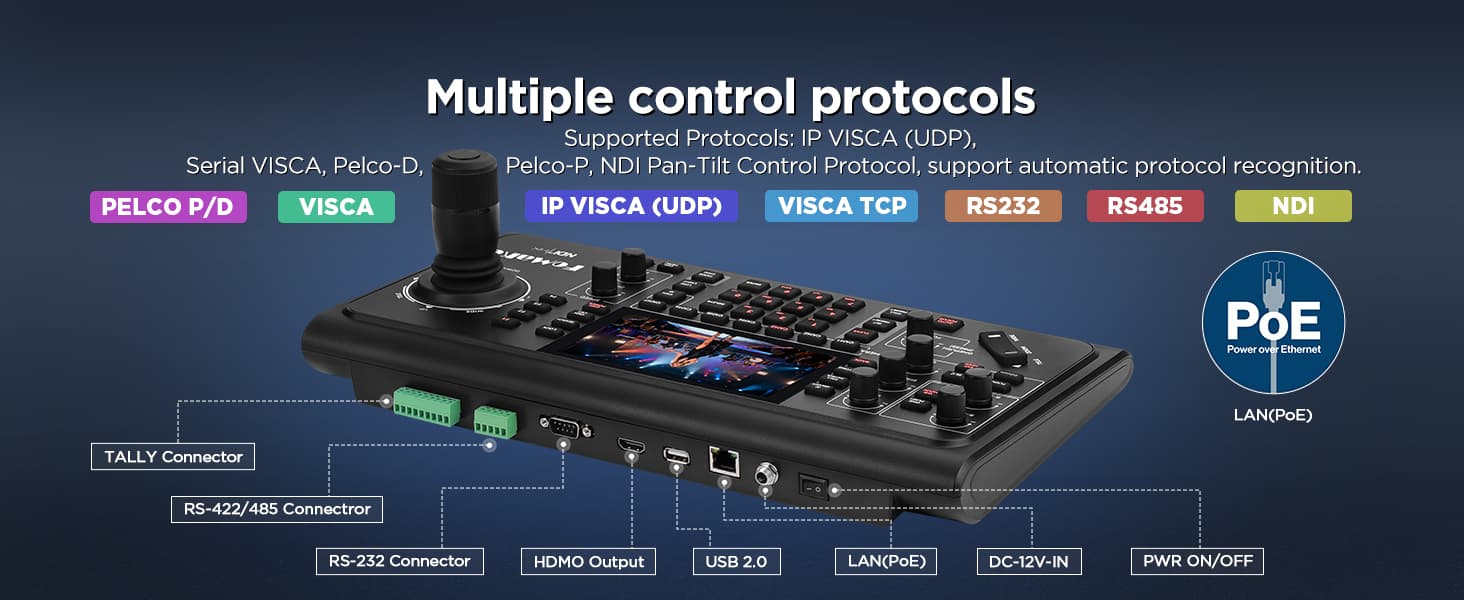

Control Interface | RJ45(support POE and NDI HX), RS-232, RS-422/485 |
IP Control Protocol | ONVIF, VISCA Over IP(UDP), NDI |
Serial Port Protocol | VISCA, Pelco D, Pelco P |
Power Supply | |
Input Voltage | 12V |
Input Current | 0.35A |
POE | 802.3af |
Rated Power | 4.2W |
Other | |
HDMI Output | HDMI Type A x 1, up to 1920 x 1080p60 |
Tally | Support up to eight channels |
Operating Environment | Indoor |
Operating Temperature | -10 deg C~40 deg C |
Storage Temperature | -20 deg C~60 deg C |

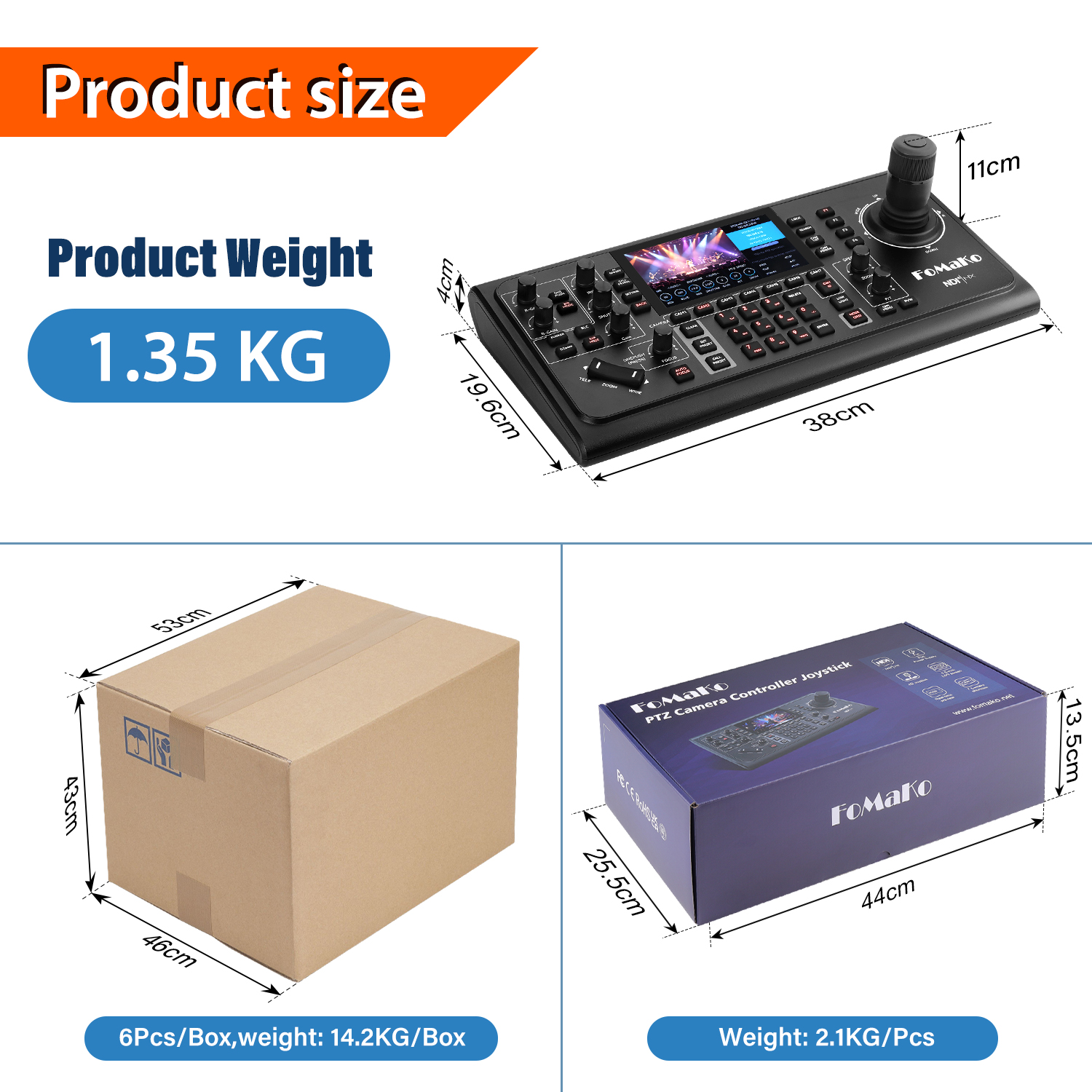

Dimensions | 380mm x 196mm x 42mm (Joystick height is not included) 380mm x 196mm x 110.5mm (Joystick height is included) |
Weight | About 1.34kg |
