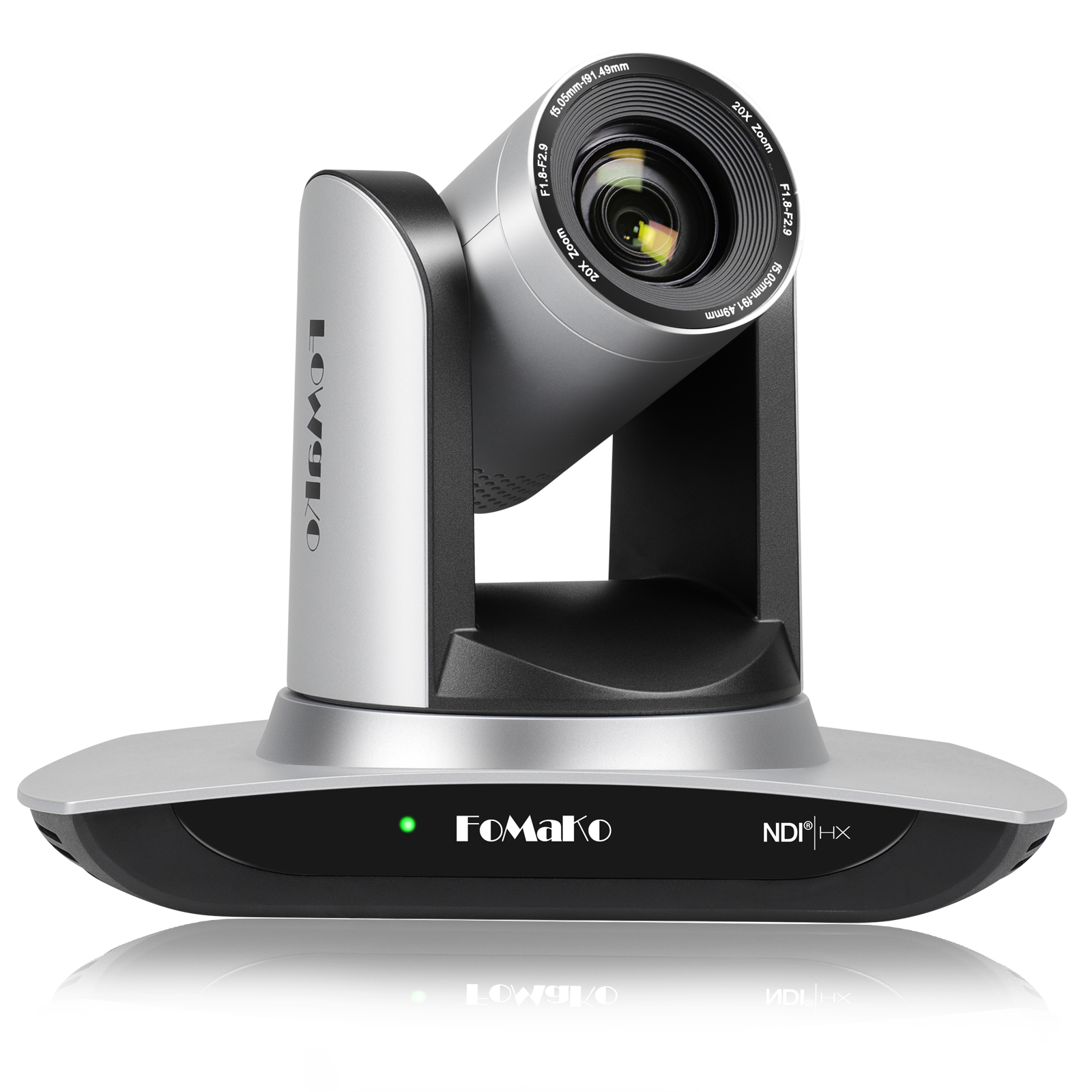

Camera Parameter

Optical Zoom

20X      f=5.05-91.49mm

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9, 2.07 megapixel

Video Format

HDMI：

1080P60/50/30/25/59.94/29.97;      720P60/50/59.94/29.97;

USB3.0:

H264/MJPG:

1920*1080P60/30/25/20/15/10/5fps;

1280*720P30/25/20/15/10/5fps;      960*540P30/25/20/15/10/5fps;

800*600P30/25/20/15/10/5fps;       800*448P30/25/20/15/10/5fps;

720*576P30/25/20/15/10/5fps;       720*480P30/25/20/15/10/5fps;

640*480P30/25/20/15/10/5fps;       640*360P30/25/20/15/10/5fps;

352*288P30/25/20/15/10/5fps;       320*240P30/25/20/15/10/5fps;

YUY2:

1920*1080P30/25/20/15/10/5fps;

1280*720P30/25/20/15/10/5fps;      1024*576P30/25/20/15/10/5fps;

800*600P30/25/20/15/10/5fps;       800*448P30/25/20/15/10/5fps;

640*480P30/25/20/15/10/5fps;       640*360P30/25/20/15/10/5fps;

480*270P30/25/20/15/10/5fps;       320*180P30/25/20/15/10/5fps;

NV12:

1920*1080P30/25/20/15/10/5fps;

1024*720P30/25/20/15/10/5fps;      1024*576P30/25/20/15/10/5fps;

800*600P30/25/20/15/10/5fps;       800*448P30/25/20/15/10/5fps;

640*480P30/25/20/15/10/5fps;       640*360P30/25/20/15/10/5fps;

480*270P30/25/20/15/10/5fps;       320*180P30/25/20/15/10/5fps;

View Angle

3.5°（N）60°（W）

AV

F1.8 – F2.9

Digital Zoom

10X

Minimum

Illumination

0.5 Lux (F1.8, AGC ON)

DNR

2D & 3D DNR

White Balance

Auto/Manual/One-push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus Mode

Auto/Manual/One Push Focus

Exposure Mode

Auto/Manual/Shutter Priority, Aperture Priority, Brightness Priority

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/ Dynamic level adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

≥50dB

Input/Output Interface

Video Interfaces

HDMI、LAN(POE&NDI optional)、USB3.0、A-IN、RS485、DC12V Power Supply、Power Switch

Video Output

HDMI, LAN,USB3.0

Video Stream

Dual stream output

Video Bitrate

64Kbps～40960Kbps

Video Compression Format

LAN：H.264、H.265

USB 3.0：MJPG、H264、H.265、YUY2、NV12

Audio Input Interface

Double track 3.5mm linear input

Audio Output Interface

HDMI, USB 3.0, LAN

Audio Compression

Format

AAC/MP3/G.711A

Audio Bitrate

32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps

Network Interface

100M Ethernet port（10/100BASE-TX）

Control Interface

RS485

Control Protocol

VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps

Power Interface

HEC3800 outlet (DC12V)

Power Supply

Input AC110V-AC220V; Output DC12V/2.0A

Input Voltage

DC12V±10%

Input Current

Maximum: 1A

Power Consumption

Maximum: 12W

Network Protocols

TCP/IP, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI, ONVIF, GB/T28181;

Support Network VISCA control protocol； Support remote upgrade, reboot and reset

PTZ Parameter

Pan/Tilt Rotation

±170°, -90°～+90°

Pan Control Speed

0.1°/s～100°/s

Tilt Control Speed

0.1°/s～45°/s

Preset Speed

Pan: 60°/sec, Tilt: 30°/sec

Preset Accuracy

±0.1°

Preset Number

255 presets (10 presets via remote control)

Other Parameter

Stored Temperature

-10℃~+70℃

Stored Humidity

20%~90%

Working Temperature

-10℃~+50℃

Working Humidity

20%~80%

Dimension

253.5mm×144mm×169mm

Weight

1.46KG

Accessory

Package

Power Supply, RS232 Control Cable, IR Remote Control, User Manual

Optional Accessories

Ceiling / wall Mount (Extra Cost)
