BH302
30x Optical Zoom, PTZ Camera kit, PTZ camera and controller, PTZ camera bundle
FoMaKo PTZ Camera Bundle 30X HDMI 3G-SDI IP PoE HDMI PTZ Camera for Church Worship(2pcs) PTZ Controller PoE IP PTZ Camera Controller Keyboard (PTZ Bundle FMK30SDIx2+KC608) BH302
Share:
Product introductionTech SpecPackagingDownload

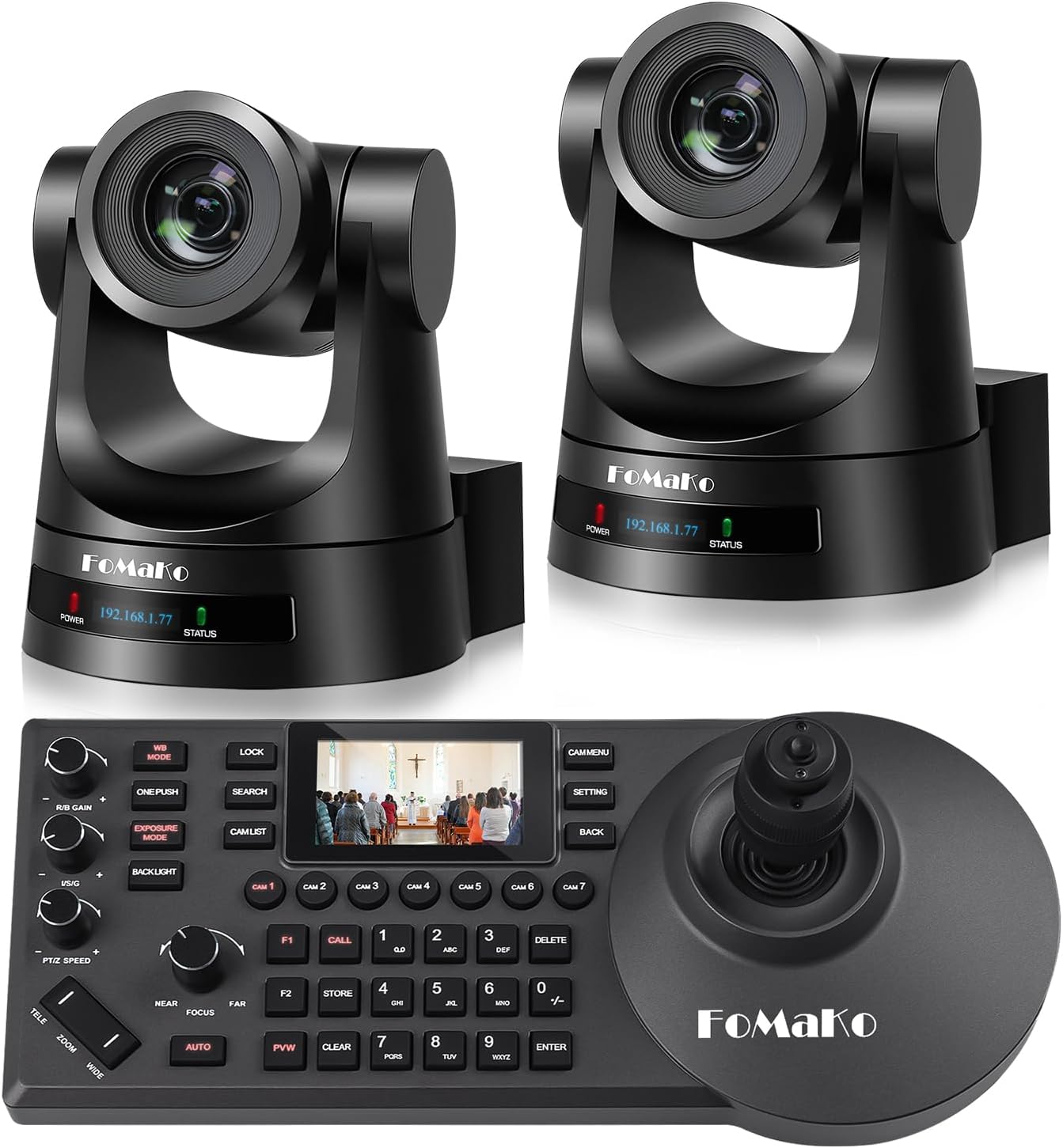

FoMaKo PTZ Camera bundle INCLUDES: 2 pieces of FMK30SDI HDMI PTZ Camera and 1 piece of KC-608 IP PTZ Camera Controller

FoMaKo 30X PoE camera Simultaneous 3G-SDI IP HDMI PTZ Camera, IP Live Streaming Camera with HDMI, PoE Supports, Suitable for Church, House of worship, Education, Teaching Broadcast, Conference, Esports, Events etc.

True to Life Colors. 30x Optical Zoom HD 1080p PTZ Camera with rich video formats 1080P60/59.94/50, 1080i60/59.94/50, 1080P30/29.97/25, 720P60/59.94/50, 720P30/29.97/25. Support H.264/H.265 video compression.

Compatible with Blackmagic Design ATEM and PTZ IP controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and Facebook.

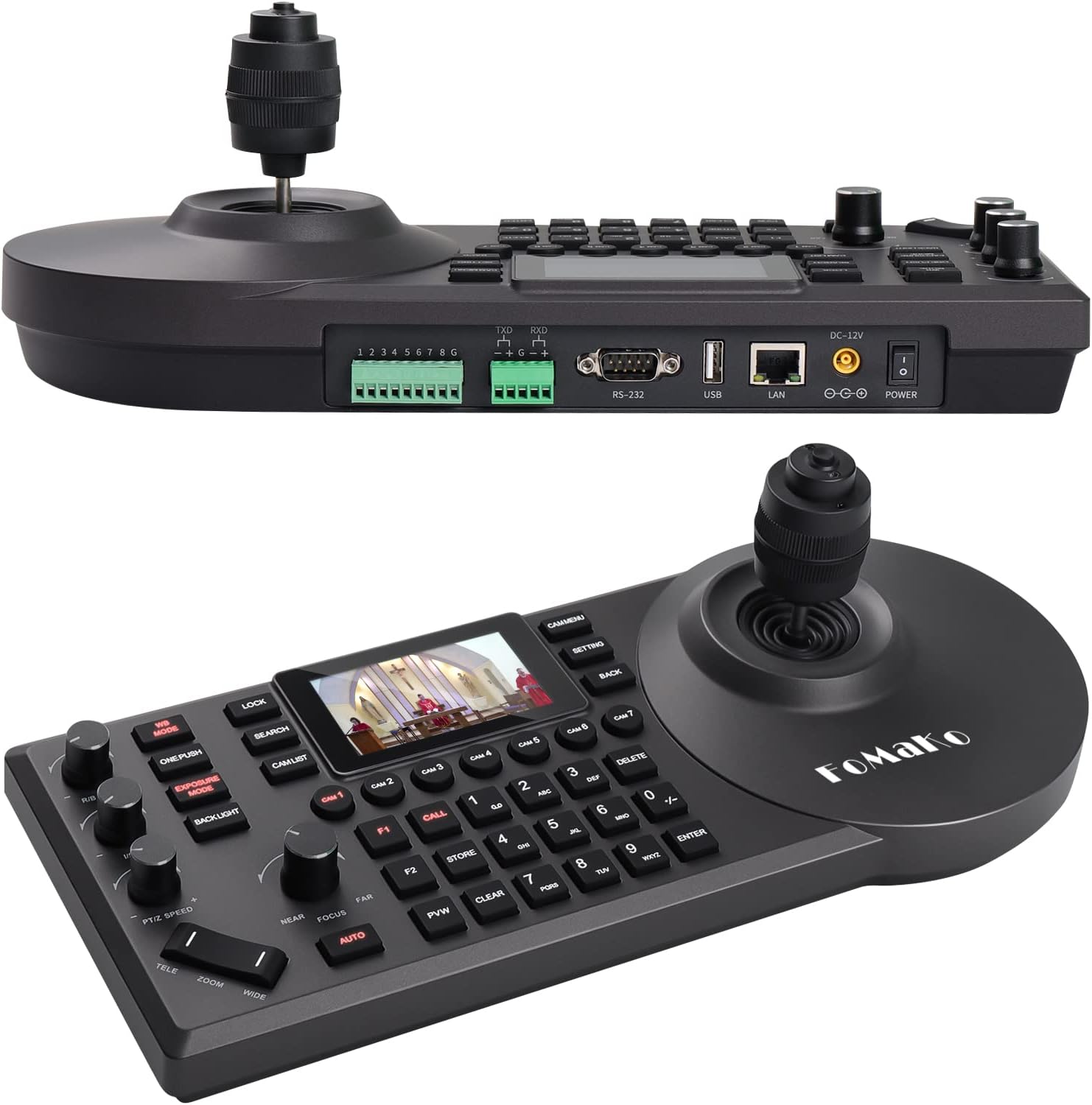

FoMaKo KC-608 IP PTZ Camera controller completely compatible with VISCA, PELCO- P/D protocol , Supports RS232, RS422, RS485 and Ethernet IP connections. PoE Supports.




ModelFMK20SDIFMK30SDIFMK12SDI
Camera Parameter
Optical Zoom20x Optical Zoom.30x Optical Zoom.12x Optical Zoom.
focal lengthf=5.2-98mmf=4.3-129mmf=3.9-46.8mm
Aperture Value(AV)F1.5~ F3.0F1.6 – F4.7F1.8 – F2.4
View Angle(FOV)FOV 55.8° (W) 3.2°(T)FOV 65.1°(W) 2.34°(T)FOV 72.5°(W) 6.3°(T)
Sensor1/2.8 inch high quality HD CMOS sensor
Effective Pixels16: 9, 2.07 megapixel
Video FormatHDMI/SDI Output: 1080P60,1080P50,1080I60,1080I50,1080P30,1080P25, 720P60, 720P50;  CVBS Output: 576i, 480i
Digital Zoom10X
Minimum Illumination0.5 Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual/ One Push/ Specify color temperature
Focus ModeAuto/Manual/One Push Focus
Exposure ModeAuto/Manual/Shutter Priority, Aperture Priority, Brightness Priority
IrisAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55 dB
Input/Output Interface
Video InterfacesHDMI, SDI, LAN(POE), CVBS, RS232-IN/OUT, RS422, RS485, A-IN, USB2.0 (U-disk storage)
Video OutputHDMI, SDI, LAN, CVBS
Video StreamDual stream output
Video FormatMain Stream: 1920×1080, 1280×720, 640×480
Sub Stream: 1280×720, 640×480, 640×360, 320×240, 320×180
Video Bitrate64Kbps~40960Kbps
Video Compression FormatH.265, H.264
Audio Input InterfaceDouble track 3.5mm linear input
Audio Output InterfaceHDMI, SDI, LAN
Audio Compression FormatAAC/MP3/G.711A
Audio Bitrate32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
Network Interface100M Ethernet port(10/100BASE-TX)
Control InterfaceRS232 (IN/OUT), RS485, RS422
Control ProtocolVISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
Power InterfaceHEC3800 outlet (DC12V)
Power SupplyInput AC110V-AC220V; Output DC12V/1.5A
Input VoltageDC12V±10%
Input CurrentMaximum: 1A
Power ConsumptionMaximum: 12W
Network ProtocolsTCP/IP, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT,  ONVIF, GB/T28181;
Support Network VISCA control protocol; Support remote upgrade, reboot and reset
PTZ Parameter
Pan/Tilt Rotation±170°, -30°~+90°
Pan Control Speed1.4 - 40°/sec
Tilt Control Speed2.9 - 30°/sec
Preset SpeedPan: 40°/sec, Tilt: 30°/sec
Preset Accuracy±0.1°
Preset Number255 presets (10 presets via remote control)
Other Parameter
Stored Temperature-10℃~+60℃
Stored Humidity20%~95%
Working Temperature-10℃~+50℃
Working Humidity20%~80%
Product Dimension143mm×176mm×169mm
Product Weight1.3KG


FoMaKo PTZ Camera bundle INCLUDES: 2 pieces of FMK30SDI HDMI PTZ Camera and 1 piece of KC-608 IP PTZ Camera Controller


Packing:45*26*38 CM, 8.5KG

2pcs/box, Box: 54*49*39cm, 18.4KG
