FoMaKo 20x-HDMI PTZ Camera, video camera with hdmi output for Church & Worship Live Streaming, easy streaming to YouTube, Facebook and More.
Compatible with Zoom and skype for business as the conferencing software.Support windows xp ,MAC, Android system.
USB PTZ Camera. Output video to USB and HDMI at the same time. SONY 1/2.8” Progressive CMOS. 1080P HD video, 20X Optical Zoom. Compatible with Sony Visca Protocol and Pelco P / D protocol.
USB/HDMI Plug and play ,easy to connect it with your Windows PC, Mac, Google Chromebook or smart TV. Intuitive remote: Easily control camera pan, tilt, zoom and more
30 Day money back guaranty for No reason. Repair for 18 Monthes.
| Model | FMK20UH | FMK12UH | |
| Camera Parameter | |||
| Optical Zoom | 20x Optical Zoom. | 12x Optical Zoom. | |
| focal length | f=4.7mm(W)～94.0 mm(T) | f=3.9mm(W)～46.8 mm(T) | |
| View Angle(FOV) | 58.7°(W)～3.2°(T) | 72.5°(W)～7.4°(T) | |
| Effective Pixels | 3.5 Megapixels | 3.1 Megapixels | |
| Sensor | 1/2.8 inch high quality HD CMOS sensor | ||
| Video Format | 1080p60/50,1080p30/25,1080i60/50,720p60/50 Optional (Can be customized) :1080p59.94,1080p29.97,1080i59.94 | ||
| Signal | PAL/NTSC | ||
| Minimum Illumination | 0.1 Lux | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto/Indoor/Outdoor/Manual | ||
| Focus Mode | Auto/Manual | ||
| Exposure Mode | Auto/Manual | ||
| Shutter | 1/1～1/10000s | ||
| Gain | Auto/Manual | ||
| Image Effect | Full color/image flip | ||
| White Balance | Auto/Indoor/Outdoor/Manual | ||
| SNR | ≥50db | ||
| Input/Output Interface | |||

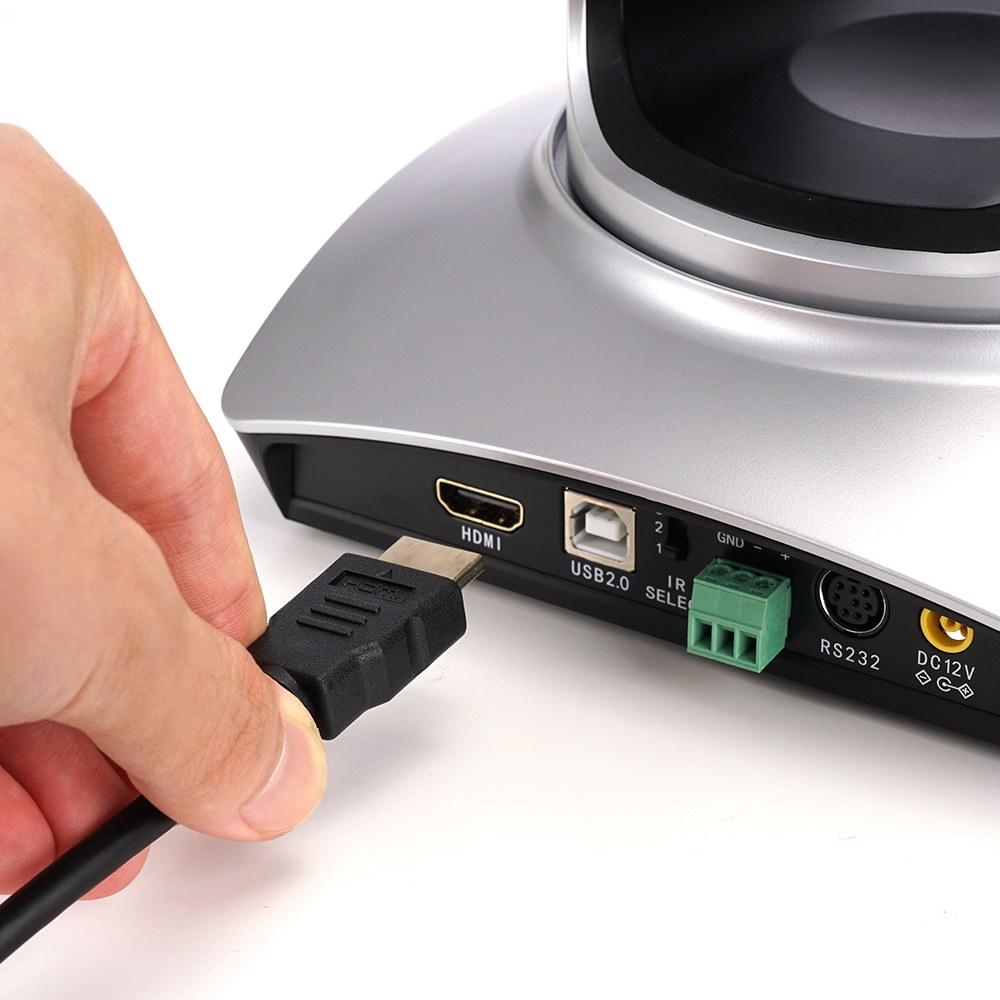

| Video Interfaces | HDMI, USB 2.0, RS485,RS232, | ||
| Video Output | HDMI, USB 2.0 | ||
| Control Interface | RS485,RS232, | ||
| Control Protocol | SONY VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps | ||
| Power Supply | 12V DC(10.8～13.0V DC) | ||
| Input Voltage | DC12V±10% | ||
| Input Current | Maximum: 1A | ||
| Power Consumption | Maximum: 12W | ||
| PTZ Parameter | |||
| Pan/Tilt Rotation | PAN: ±177° Tilt: -30°～+90° | ||
| Pan Control Speed | max.speed:80°/sec | ||
| Tilt Control Speed | max.speed:60°/sec | ||
| Preset Accuracy | ±0.1° | ||
| Preset Number | 255 presets (10 presets via remote control) | ||
| Other Parameter | |||
| Stored Temperature | -10℃~+60℃ | ||
| Stored Humidity | 20%~95% | ||
| Working Temperature | -10℃~+50℃ | ||
| Working Humidity | 20%~80% | ||
| Product Dimension | 160mm×160mm×185mm | ||
| Product Weight | 1.1KG | ||
| Packing List | 1x FoMaKo HDMI PTZ Camera | |||
| 1x Remote Control | ||||
| 1x Ceiling Bracket | ||||
| 1x Wall Mount Bracket | ||||
| 1x Power Adapter | ||||
| 1x RS232 Cable | ||||
| 1x 5m(16.4ft) USB Cable | ||||
| 1x 3m(9.8ft) HDMI Cable | ||||
| 1x User manual | ||||
| Some Screws | ||||
| Single product packing | Dimension 30*25*24CM weight: 3.5KG | |||
| Outer packing box | Package specification: 4pcs/box, Dimension 50*32*53CM Gross weight: 16KG | |||
| Installation Method | Support desktop, wall mount, ceiling mount and tripod installation. | |||
