KC608N
NDI PTZ Controller, 3" LCD Screen Preview, 4D Joystick PTZ Controller
FoMaKo NDI PTZ Controller PoE NDI PTZ Camera Controller 3" LCD Screen Preview, 4D Joystick PTZ Controller for Church Live Service Education, Visca PELCO D/P RS232 RS485, Black KC608N NDI Version PTZ controller
Share:
Product introductionTech SpecPackagingDownload

    FoMaKo NDI PTZ Controller PoE PTZ IP Controller Keyboard with 4D Joystick for Church & Worship, Education, Teaching Broadcast, Conference, Esports, Events etc. , completely compatible with VISCA, PELCO- P & D protocol , Supports RS232, RS422, RS485 and Ethernet IP connections. Control over IP
    POE supported, very easy to use, just one cable to connect to your LAN.
    Easy and professional to control PTZ Cameras, Pan, Tilt, Zoom, focus, Iris, backlight, presets, PTZ Speed, quick PTZ Camera select & more.
    Support 7 cameras quick select,control Up to 255 PTZ Cameras.

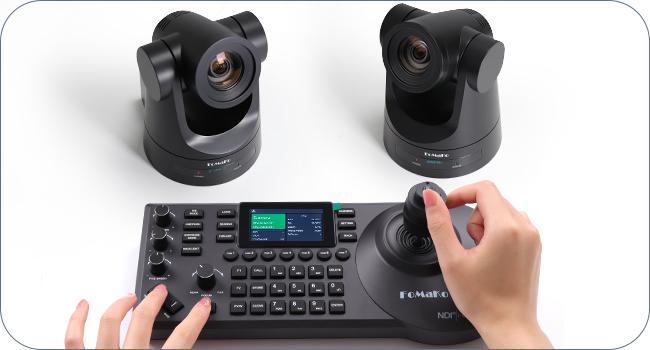

    Ethernet IP connection control the IP Streaming PTZ Cameras in your LAN only by one network cable. A Controller for Multi-Camera and Multi-angle control Video Production and Live Streaming.




Keyboard Parameters

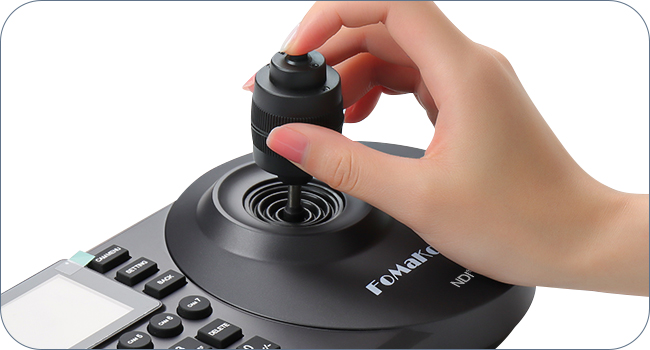

Joystick4D precision Joystick
Knobs3Dknobs,support scale rotation to addjust parameters, support button
ButtonsHigh-Quality silicone buttons, support white and red two-color backlight

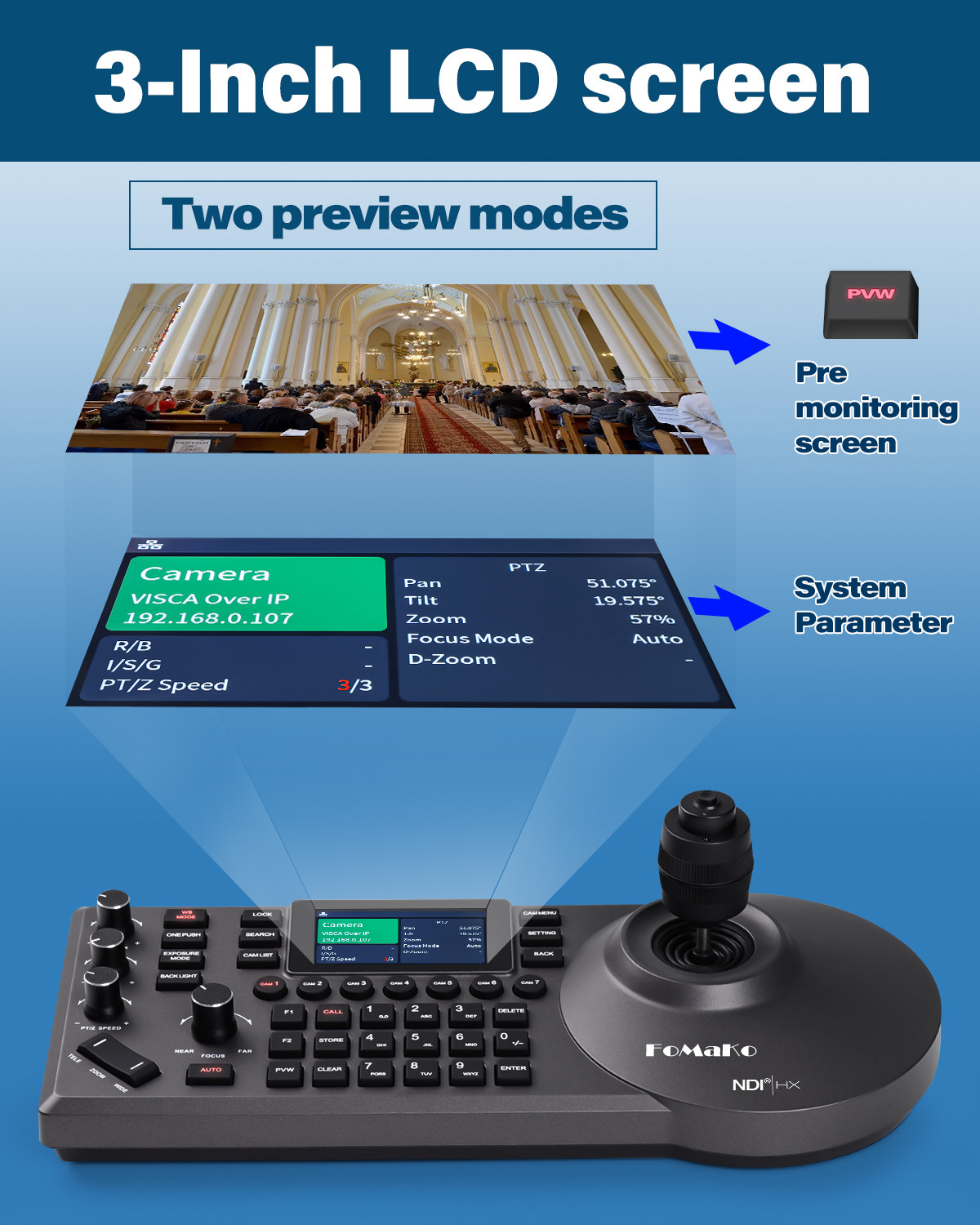

Screen3″LCDcolordisplay
Shortcut ButtonSupport 7 camera shortcut button settings
Button Prompt ToneButton sound prompt On/Off
Lock ButtonSupport one-key lock function
Max.ControlQuantity1000
Max.Preset Position255
Control
Control InterfaceRJ45(support POE and NDI HX2)、RS-232、RS-422/485
IP Control ProtocolOnvif、VISCA Over IP、VISCA TCP、NDI
Serial Port ProtocolVISCA、Pelco D、Pelco P
PowerSupply
Input Voltage12V
Input Current0.25A
POE802.3af
Rated Power3W
Other
TallySupport up to eight channels
Operating EnvironmentIndoor
Operating Temperature-10℃ -40℃
Storage Temperature-20℃-60℃
Dimensions332*136*58mm( Joystick height is not included)
332*136*116mm(Joystick height is included)
WeightAbout 1.0 kg


6pcs/box,Outer packaging box 44*43*43CM 12.2 KG/box. Single Product Packing 42*20*14 CM,1.8 KG/item.


6pcs/box, Outer packaging box 17*17*17 inch, 27 lb/box. Single Product Packing 16*8*6 inch, 4 lb/item.
